7 Advanced Strategies for Plumbing BIM & Modeling Services | 3D Revit Coordination

In modern architectural design engineering, Plumbing BIM & Modeling Services provide the critical virtual framework required to execute complex mechanical, electrical, and piping installations without field interference. The architectural, engineering, and construction (AEC) industries have transitioned away from traditional two-dimensional CAD drafting toward data-rich, multi-dimensional Building Information Modeling (BIM) within integrated design software such as Autodesk Revit. Building plumbing infrastructure—encompassing sanitary drainage, stormwater collection, domestic water distribution, fuel gas piping, greywater recycling, and specialized industrial or medical fluid networks—presents distinct spatial and hydraulic constraints. Unlike flexible electrical conduits or cable trays, gravity drainage lines require unbroken slopes, specific fitting geometries, and unyielding spatial clearances to maintain fluid dynamics and code compliance.

Through 3D Revit coordination, Virtual Design and Construction (VDC) teams model piping networks with exact geometric fidelity and parametric intelligence. This digital pre-construction workflow resolves interdisciplinary spatial conflicts, automates accurate material take-offs, streamlines regulatory approvals, and drives off-site pre-fabrication through pipe spooling. Engineering firms utilizing comprehensive building modeling solutions through ENGR Team establish a streamlined technical pipeline that bridges early schematic concepts directly to job site assembly, substantially reducing operational risk and financial exposure throughout the project lifecycle.

Core Discipline Breakdown in Plumbing BIM & Modeling Services

Plumbing modeling in a 3D BIM environment requires a technical synthesis of fluid dynamics, system routing logic, and parametric family development. Unlike basic structural elements, plumbing networks are composed of interconnected systems that dynamically recalculate fluid velocities, pressure drops, and volumetric flow rates in response to changes in building geometry, fixture counts, or spatial layouts.

Sanitary Waste and Venting Layouts in Plumbing BIM & Modeling Services

Sanitary drainage systems represent the most spatially rigid plumbing discipline within a building model. Soil and waste pipes collect discharge from water closets, urinals, lavatories, floor drains, and commercial kitchen fixtures, channeling effluent through gravity risers to municipal sewer connections or localized wastewater treatment plants. Because sanitary lines rely on unpressurized gravity flow, VDC detailers must establish exact slope parameters, invert elevations, and cleanout accessibility within Revit prior to coordinating adjacent building services. Venting networks must simultaneously be modeled to equalize atmospheric pressure within drainage stacks, preventing trap seal siphonage and preventing sewer gas from entering occupied spaces. Modeling these systems requires specialized parametric fitting families, including combination wyes, long-sweep turn elbows, sanitary tees, and air admittance valves, all designed to adhere strictly to regional plumbing codes.

Pressurized Domestic Hot and Cold Water Distribution

Domestic water networks distribute clean potable cold and hot water under pressure to fixtures throughout a structure. Within the 3D model, detailers incorporate incoming water service entries, backflow preventers, booster pump packages, water softeners, filtration units, storage vessels, and domestic water heaters. Modeling domestic hot water distribution requires continuous return recirculation loops to guarantee immediate hot water delivery at distant fixtures and prevent temperature stratification that encourages bacterial growth such as Legionella. Because pressurized water lines run through tight ceiling corridors and vertical chases alongside structural members and ductwork, exact pipe insulation thicknesses, valve handle clearance zones, and wall penetration sleeves must be integrated into the physical model geometry.

Storm Water Management and Siphonic Drainage Networks

Storm drainage networks manage rainwater runoff from building roofs, podiums, and exterior hardscapes. Primary roof drains and secondary emergency overflow drains connect to vertical leaders and horizontal collector headers. In large commercial or industrial facilities, high-performance siphonic roof drainage systems are frequently specified. Siphonic systems operate completely full of water during peak storm events, generating negative hydraulic pressure that pulls rainwater off the roof at high velocities. This mechanism allows horizontal collection pipes to be routed without slope, preserving vertical ceiling space. Modeling siphonic networks in Revit requires accurate hydraulic calculations and rigid structural attachment modeling to withstand dynamic pressure surges and hydraulic shocks.

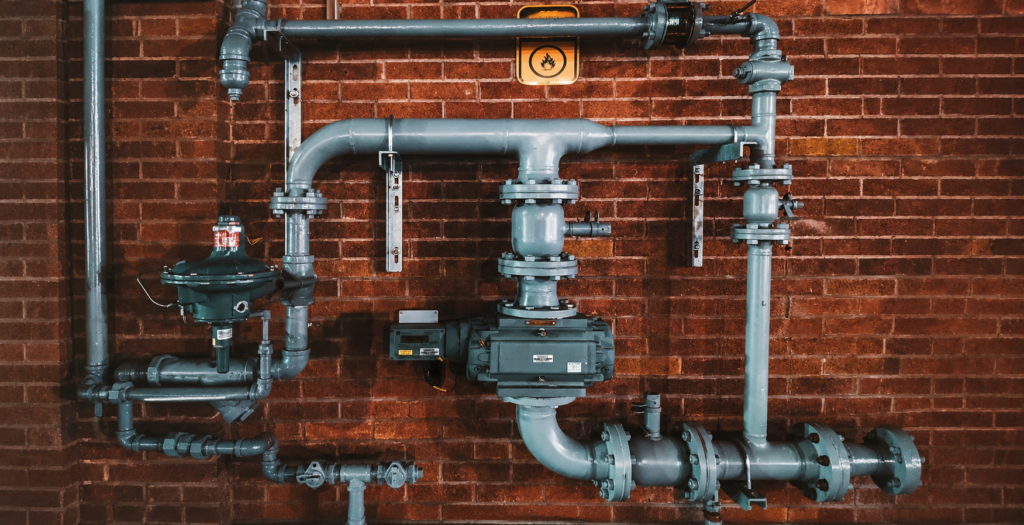

Fuel Gas and Specialized Industrial Fluid Systems

Commercial, industrial, and healthcare facilities routinely require specialized fluid distribution networks. These include natural gas and liquid petroleum gas (LPG) piping, compressed air systems, industrial vacuum lines, chemical waste drainage, and medical gas networks such as oxygen, nitrous oxide, and surgical vacuum. Modeling these systems demands strict adherence to material specifications—ranging from brazed medical-grade copper to welded stainless steel or acid-resistant polypropylene—as well as physical separation distances from electrical equipment and high-temperature surfaces.

Sizing Equations and Hydraulic Principles in Plumbing BIM & Modeling Services

Executing accurate Plumbing BIM & Modeling Services requires strict adherence to hydraulic engineering equations and international building codes. Software environments do not replace core engineering principles; instead, they embed fluid mechanics equations directly into parametric pipe parameters.

Gravity Drainage Hydraulics and Velocity Profiles

Gravity drainage pipes must maintain a balanced flow velocity profile. If the liquid flow velocity is too low, heavy suspended solids settle at the bottom of the pipe, causing chronic blockages and sediment build-up. Conversely, if velocity is excessively high, liquids rush ahead of solid waste, leaving dry particulate matter behind while accelerating pipe wall abrasion.

The vertical fall and pitch of horizontal drainage runs are evaluated using the standard geometric slope formula:

Slope (%) = (Hv / Lh) × 100

Where:

Hv represents the total vertical fall across the run (m or ft).

Lh represents the total horizontal length of the run (m or ft).

To evaluate the mean flow velocity within partially filled gravity drainage lines, engineers apply Manning’s Equation:

v = (k / n) × Rh^(2/3) × S^(1/2)

Where:

v is the mean velocity of flow (m/s or ft/s).

k is a unit conversion factor (1.0 for SI units, 1.486 for US Customary units).

n is the Manning roughness coefficient (typically 0.009 to 0.012 for smooth plastic or copper piping).

Rh is the hydraulic radius, calculated as the cross-sectional area of flow divided by the wetted perimeter (A/P).

S is the friction or hydraulic slope of the channel.

Design guidelines from authoritative technical organizations, such as the American Society of Plumbing Engineers (ASPE), dictate a target self-cleansing velocity range of 0.7 m/s ≤ v ≤ 2.5 m/s (2.3 ft/s ≤ v ≤ 8.2 ft/s).

Standard Gravity Slope Requirements for Drainage Lines

International plumbing standards, including the International Plumbing Code (IPC) and IS 1742, establish mandatory minimum slopes based on nominal pipe diameters to ensure self-cleansing flow:

Nominal Pipe Diameter (mm / inches)	Minimum Code Slope	Gradient Fall per Meter / Foot	Primary Plumbing Application
40 mm – 50 mm (1.5″ – 2.0″)	1 in 40 (2.50%)	25 mm/m (1/4 inch per foot)	Individual fixture waste branches (lavatories, sinks, showers).
75 mm (3.0″)	1 in 40 (2.50%)	25 mm/m (1/4 inch per foot)	Multi-fixture soil branches and floor drain collection headers.
100 mm (4.0″)	1 in 57 (1.75%)	17.5 mm/m (1/8 to 1/4 inch per foot)	Main building soil stacks and horizontal building drains.
150 mm (6.0″)	1 in 100 (1.00%)	10 mm/m (1/8 inch per foot)	High-capacity site sewer mains and storm collector headers.

Pressurized Water Sizing and Hunter’s Curve Calculations

Pressurized domestic water distribution networks are sized using Water Supply Fixture Units (WSFU). Fixture units represent the probable hydraulic load placed on a system by various fixtures during peak demand periods. Engineers convert cumulative WSFU values into estimated volumetric flow rates in gallons per minute (GPM) or liters per second (L/s) using Hunter’s Curve probability models. Once peak flow rates are established, pipe diameters are calculated within Revit to keep fluid velocities below 2.4 m/s (8.0 ft/s) for cold water lines and 1.5 m/s (5.0 ft/s) for hot water lines, preventing hydraulic noise, water hammer, and pipe wall erosion.

Clash Detection Protocols for Plumbing BIM & Modeling Services

The primary objective of implementing 3D Revit coordination within plumbing workflows is the total elimination of spatial guesswork prior to field mobilization. Projects historically suffer severe budget overruns and construction delays due to interdisciplinary service collisions discovered during installation. Automated clash detection within a unified federated model provides a controlled virtual environment to identify, analyze, and resolve spatial interferences.

Hard Clashes versus Soft and Clearance Interferences

Clash detection software, such as Autodesk Navisworks, categorizes spatial conflicts into distinct types:

• Hard Clashes: Occur when two physical building components occupy the exact same spatial coordinates. Examples include a 4-inch sanitary soil stack passing through a structural steel beam, or a domestic cold water pipe routed directly through an HVAC supply duct.
• Soft Clashes (Clearance Conflicts): Occur when building elements infringe upon required operational, maintenance, or insulation zones. Examples include routing a water pipe too close to an electrical panelboard, violating working space clearances mandated by electrical codes, or placing a cleanout plug in an inaccessible location behind a heavy duct support hanger.

Quantitative Impact on Project Costs and Schedules

Data compiled across commercial, institutional, and healthcare projects illustrates the substantial financial and operational benefits of 3D Revit coordination:

• Change Order Reduction: Implementing proactive virtual clash detection leads to a 30% to 40% reduction in field-issued change orders.
• Rework Cost Savings: Resolving conflicts digitally during the pre-construction phase saves up to 10% of the total contract value compared to physical demolition and field modification.
• Field Productivity Boost: Projects utilizing structured VDC coordination demonstrate a 20% to 25% increase in field execution efficiency.

Cross-Disciplinary Integration Across Building Services

Plumbing design cannot operate in isolation; it relies on real-time spatial integration with all surrounding building systems. Effective VDC workflows align plumbing layouts alongside structural framing, architectural soffits, mechanical distribution established through HVAC layout plans, electrical conduits managed via electrical engineering services, and overarching engineering oversight delivered by MEP planning services. This multi-disciplinary synchronization ensures that heavy mechanical ducts and sloped drainage lines share constrained ceiling plenums harmoniously, preserving ceiling heights and maintenance corridors.

Coordination Metric	Traditional 2D Drafting Method	3D Revit Plumbing BIM Modeling Services
Spatial Environment	Flat 2D plans and sections with manual line overlays.	Data-rich 3D parametric geometry with exact physical dimensions.
Data Intelligence	Graphical lines lacking embedded technical parameters.	Embedded metadata including materials, flow rates, and pressure ratings.
Clash Identification	Manual drawing reviews; high risk of missed field clashes.	Automated programmatic clash detection across all trade models.
Slope Sizing Integration	Manual slope calculations and static visual drawing lines.	Parametric slope configuration with dynamic elevation recalculation.
Material Take-Offs	Manual manual take-offs prone to human error.	Automated 5D Quantity Take-Offs (QTO) generated from model objects.
Pre-fabrication Readiness	Low; requires extensive site measurements and field cutting.	Direct export of isometric spool drawings for off-site shop pre-fabrication.

Pre-fabrication and Pipe Spooling Workflows in Plumbing BIM & Modeling Services

One of the most significant advantages of high-LOD (Level of Development) Plumbing BIM & Modeling Services is the ability to transition labor from dangerous, congested job sites into controlled off-site fabrication facilities. Pipe spooling converts coordinated 3D BIM models into fabrication-ready assembly packages.

The Structure and Function of Pipe Spools

A pipe spool is a prefabricated sub-assembly of a piping system comprised of pre-cut pipe segments, welded fittings, flanges, structural supports, and inline valves. Instead of cutting, beveling, fitting, and welding individual pipe segments in overhead ceiling spaces, workers assemble complete spools in a workshop under controlled conditions.

Spool Breaking Rules and Logistical Planning

Detailers must divide continuous piping runs based on strict technical and logistical constraints:

• Transportation Envelopes: Length, width, and height limitations of shipping flatbed trailers.
• Hoisting and Crane Capacities: Maximum payload limits of job site cranes, hoists, and rigging equipment.
• Site Access Pathways: Physical clearances of elevator shafts, doorways, and corridors needed to transport spools to their final installation point.
• Field Tie-in Locations: Strategic placement of flanged, threaded, or grooved mechanical couplings (e.g., Victaulic) to allow easy final connection between adjacent spools.

Automated Spooling Technologies in Autodesk Revit

Using advanced add-ins like MSUITE BIM within Revit, detailers establish parametric spool-breaking rules. The software automatically segments continuous pipe runs into logical spool packages, assigns unique spool IDs, generates individual isometric spool sheets, compiles weld maps, and creates automated Bills of Materials (BOM).

Spooling Stage	Primary VDC Activity	Key Output / Deliverable	Operational Benefit
1. Model Development	Constructing LOD 400 fabrication models using real manufacturer parameters.	Detailed 3D Revit plumbing model.	Guarantees components reflect physical market products.
2. Clash Sign-Off	Multi-trade clash resolution and freeze of piping routes.	Zero-clash coordinated federated model.	Prevents fabricating pipe assemblies that clash on-site.
3. Spool Segmentation	Applying transportation, lifting, and field tie-in rules to split lines.	Spool break layout maps and line numbers.	Optimizes shop welding vs field assembly trade-offs.
4. Package Generation	Extracting shop drawings, cut sheets, and material schedules.	Isometric spool sheets, BOM, weld maps.	Speeds up shop sheet generation by up to 90%.
5. Shop Fabrication	Cutting, beveling, welding, and hydrostatic testing in workshop.	Certified prefabricated pipe spools.	Elevates weld quality; improves shop productivity 5-fold.
6. Site Installation	Transporting spools to site and executing mechanical connections.	Assembled, fully functional plumbing network.	Reduces site labor hours and safety incidents significantly.

Heritage Structures, Adaptive Reuse, and Retrofitting Workflows

Integrating modern high-density plumbing infrastructure into historic structures or adaptive reuse developments presents distinct architectural and engineering challenges. Older buildings were constructed long before modern plumbing fixtures, accessibility mandates, and fire protection codes were established.

Physical Constraints of Legacy Buildings

Historic properties frequently present:

• Minimal or non-existent ceiling cavities and fixed floor-to-floor heights.
• Thick load-bearing masonry or stone walls that restrict penetrations.
• Ornate plaster ceilings, decorative woodwork, and protected historic facades.
• Incomplete, inaccurate, or missing legacy documentation.

Scan-to-BIM Integration and Point Cloud Modeling

To overcome undocumented site conditions, engineering teams utilize High-Definition Surveying (HDS) via 3D terrestrial LiDAR laser scanners. The resulting point cloud data—comprising millions of precise 3D spatial coordinates—is imported directly into Autodesk Revit. Modellers construct a parametric “As-Is” model that accurately captures structural deflections, non-plumb walls, un-level floor slabs, and existing structural timber or ironwork.

Non-Destructive Routing Strategies in Historical Renovations

Equipped with a precise Point Cloud Revit model, VDC engineers design non-destructive plumbing routes:

• Vertical Chase Consolidation: Grouping sanitary stacks and domestic supply risers into central service cores to minimize penetrations through historic floor structures.
• Offset Soffits and Raised Floors: Routing horizontal waste lines within low-profile raised access floors or concealed wall furrings pulled back from historic windows.
• Exposed Architectural Integration: When pipe concealment is impossible without destroying historic fabric, plumbing lines are routed as exposed, high-finish architectural features.

Regional Codes, Environmental Standards, and Corrosion Mitigation

Modern Plumbing BIM & Modeling Services must balance hydraulic utility with strict regional compliance and environmental sustainability benchmarks.

Sustainability and Water Efficiency Certification

Plumbing design directly influences water efficiency and building energy metrics within green building rating frameworks like LEED (Leadership in Energy and Environmental Design) and BREEAM. Parametric Revit models enable automated calculation of water use reduction credits by:

• Modeling ultra-low-flow water closets, sensor faucets, and waterless urinals.
• Tracking greywater harvesting networks that capture discharge from lavatories and showers for reuse in toilet flushing and sub-surface irrigation.
• Sizing solar domestic water heating integration and high-efficiency heat recovery loops to cut operational carbon footprint.

Material Performance and Corrosion Mitigation in Harsh Environments

Plumbing assets installed in high-humidity, marine, or coastal environments face accelerated corrosion. Coastal air carrying chloride ions initiates galvanic corrosion, pitting, and crevice degradation across metallic pipes, heat exchangers, and booster pump skids. To prevent early failure, plumbing specifiers mandate specialized corrosion protection measures. Applying polyurethane-based protective barriers—such as Blygold PoluAl XT coatings—seals metallic surfaces without sacrificing thermal performance or inducing excessive pressure drops, extending asset life in coastal regions.

Compliance with International Building Codes and Authorities

Plumbing BIM models must conform strictly to local and international statutory regulatory frameworks:

• United Kingdom Regulations: Compliance with Approved Document G (Sanitation, Hot Water Safety, and Water Efficiency), Approved Document H (Drainage and Waste Disposal), Approved Document L (Conservation of Fuel and Power), and Approved Document F (Ventilation). Models are validated against CIBSE Technical Guidelines to ensure proper indoor health and efficiency compliance.
• North American & Caribbean Jurisdictions: Adherence to the International Plumbing Code (IPC), Uniform Plumbing Code (UPC), and local submittal oversight like the Cayman Islands Building Control Unit (BCU). The BCU requires fully coordinated, code-compliant MEP submittal drawings before issuing building construction permits.

Strategic Best Practices for Implementing Plumbing BIM & Modeling Services

To maximize return on investment and achieve seamless 3D coordination, engineering firms and VDC managers must implement standardized BIM protocols.

1. Establish a Comprehensive BIM Execution Plan (BEP)

Before initiating modeling, all project stakeholders must agree on a detailed BEP. The BEP defines project origin points, coordinate systems (GIS alignment), file-naming conventions, level of development mandates (LOD 100 through LOD 400), clash tolerance thresholds, and weekly coordination meeting schedules.

2. Standardize Parametric Revit Families and Shared Parameters

Inconsistent family modeling leads to corrupted schedules and broken system connections. BIM managers must enforce standard family libraries where pipe fittings, valves, cleanouts, and fixtures contain uniform shared parameters for flow rate, pressure drop, connection size, and omniclass classification codes.

3. Enforce Level of Development (LOD) Milestones

• LOD 200 (Schematic Design): Generic pipe routing indicating overall spatial paths and main riser locations.
• LOD 300 (Design Development): Accurately sized pipes with correct slopes, exact valve locations, and coordinated fixture connections.
• LOD 350 (Construction Documentation): Detailed cross-disciplinary support locations, clearance zones, structural penetrations, and wall sleeve annotations.
• LOD 400 (Pre-fabrication & Spooling): Manufacturer-specific piping components complete with weld details, couplings, bolt holes, and spool break points.
• LOD 500 (As-Built Operations): Field-verified digital twin containing serial numbers, maintenance schedules, and commissioning records.

4. Leverage Cloud-Based Federated Model Collaboration

Utilizing cloud coordination environments such as Autodesk Construction Cloud (ACC) or BIM 360 allows architects, structural engineers, and MEP detailers to work on a single source of truth. Live updates ensure that if a structural engineer alters a floor beam location, the plumbing detailer is instantly alerted to resolve potential clashes before drawings are approved for fabrication.

Emerging Technologies and Industrial Trends

The landscape of Plumbing BIM & Modeling Services is expanding rapidly through automated computational design and digital asset tracking.

Artificial Intelligence and Algorithmic Pipe Routing

Emerging generative design add-ins within Revit use artificial intelligence algorithms to compute optimal piping pathways. By evaluating variables such as minimum fitting count, pressure loss optimization, structural avoidance, and material cost, AI algorithms instantly generate dozens of code-compliant, clash-free routing alternatives for complex plumbing headers.

IoT Integration and Digital Twin Handover

Post-construction handover is moving beyond static PDF maintenance manuals. High-LOD BIM plumbing models are linked to Internet of Things (IoT) sensors embedded within building water systems. These “Digital Twins” provide facility managers with real-time operational data—monitoring flow rates, water pressure drops, backflow preventer status, acoustic leak detection, and water heater energy consumption. Predictive maintenance algorithms analyze operational anomalies, allowing facilities teams to address plumbing failures before catastrophic water damage occurs.

Strategic Conclusions on Plumbing BIM & Modeling Services

Modern commercial and industrial developments present unprecedented spatial density, tight construction schedules, and strict energy efficiency mandates. Relying on fragmented 2D drafting or manual field-coordination inevitably exposes project owners to substantial cost overruns, material waste, and prolonged installation delays.

Plumbing BIM & Modeling Services paired with rigorous 3D Revit coordination redefine the mechanical engineering paradigm. By converting design intent into precise, parametric 3D geometry, engineering teams resolve spatial conflicts virtually, embed crucial hydraulic calculations, and ensure full compliance with regional building standards. Furthermore, high-fidelity BIM models serve as the direct foundation for off-site pipe spool fabrication, dramatically boosting field assembly speeds while elevating job site safety and quality control. Embracing advanced VDC workflows ensures that physical assets are built right the first time, delivering sustained operational value, lower total cost of ownership, and long-term facility resilience
