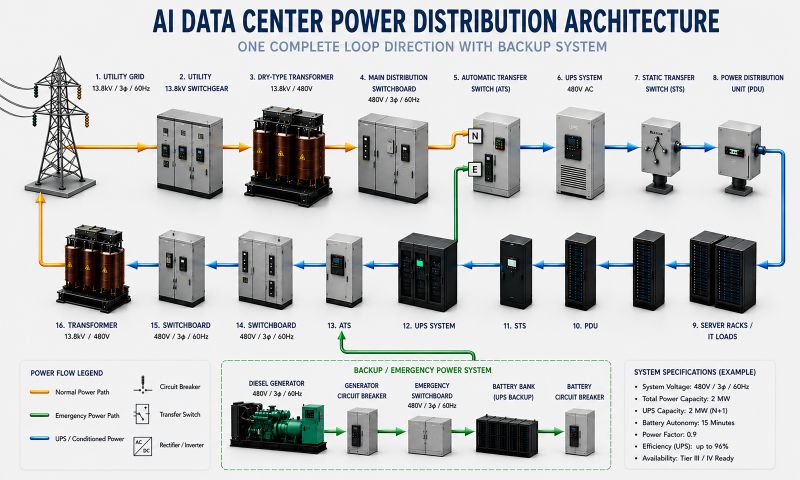

10 Pillars of Electrical Power Distribution Planning for Industrial Facilities

Strategic design and electrical power distribution planning for industrial facilities requires balancing heavy-duty equipment demands with strict safety codes. Industrial environments present a distinct set of operational challenges, characterized by high-density inductive motor loads, non-linear harmonic-producing power electronic devices, and continuous processes where even a momentary power interruption translates into massive financial losses due to lost manufacturing throughput. Modern industrial facilities must manage these complexities amid shifting economic and technical paradigms. Two major shifts have shaped contemporary design methodologies: the global deregulation of electric utilities, which transfers the burden of power quality analysis, energy conservation, and utility tariff optimization directly onto the consumer, and a shrinking pool of highly experienced facility operations staff. Addressing these challenges requires utilizing professional MEP plan services to ensure that electrical systems are designed as part of an integrated, highly efficient infrastructure.

In an industrial context, electrical design is not merely an exercise in sizing wires and circuit breakers. It represents a multidisciplinary engineering endeavor where thermal dissipation, mechanical equipment interface, structural loading, and digital control integration are analyzed. Engineers must transition away from legacy design heuristics toward dynamic, computerized system modeling. This ensures that as a facility expands or modifies its production lines, the electrical infrastructure remains resilient, maintainable, and fully compliant with the evolution of national and international standards.

Pillar 1: Regulatory Frameworks and Compliance Standards

Developing a reliable industrial power system requires strict adherence to industry standards and recommended practices. The standard framework for this design is governed by the Institute of Electrical and Electronics Engineers (IEEE) Color Books series, specifically IEEE Std 141-1993, which is known as the “Red Book”. This standard provides comprehensive guidelines on system planning, voltage selection, surge protection, short-circuit calculations, grounding, and equipment applications in industrial environments.

IEEE Standard	Color Book Identifier	Specific Application in Industrial Facilities
IEEE Std 141-1993	Red Book	Overall electric power distribution design, system planning, voltage selection, and equipment applications.
IEEE Std 142-2007	Green Book	Recommended practice for grounding industrial and commercial power systems.
IEEE Std 242-2001	Buff Book	Overcurrent and fault protection coordination, relay applications, and circuit-breaker ratings.
IEEE Std 399-1997	Brown Book	Industrial power systems analysis, modeling methodologies, and computerized load-flow studies.
IEEE Std 446-1995	Orange Book	Design and integration of emergency, standby, and uninterruptible power systems (UPS).
IEEE Std 1100-2005	Emerald Book	Powering and grounding sensitive electronic and microprocessor-based manufacturing equipment.

Alongside these guidelines, compliance with safety codes is legally mandated. The National Fire Protection Association (NFPA) publishes the National Electrical Code, also known as NFPA 70, which dictates the safe installation of electrical wiring, overcurrent protection, and equipment grounding in the United States. While the NEC establishes minimum standards to prevent fires and electrical hazards, standard practice requires engineers to design beyond these minimum codes to meet the operational reliability demands of industrial processes. For operational safety, design engineers must also integrate the safety provisions of NFPA 70E, which addresses workplace electrical safety, including arc-flash hazard boundaries, personal protective equipment (PPE) requirements, and safe operational procedures. Together, these standards establish a baseline that ensures industrial electrical designs prevent fire hazards, mitigate the risk of equipment damage, and protect human life.

Pillar 2: Load Profiling and System Characterization Metrics

An industrial distribution system must be designed based on load profiling and characterization, as outlined in classical textbooks such as Turan Gonen’s Electrical Power Distribution System Engineering and A.S. Pabla’s Electric Power Distribution. Understanding the electrical characteristics of a facility requires analyzing several ratios, including demand factor, diversity factor, load factor, and loss factor.

The demand factor is the ratio of maximum demand to total connected load. Industrial facilities exhibit demand factors ranging from 85% to 90%, reflecting a high continuous operational state compared to commercial or residential loads:

Demand Factor=Total Connected Load Power (kW)Maximum Demand Power (kW)

[cite: 7]

Conversely, the diversity factor represents the non-coincidence of individual peak loads across different sub-sections of the facility. Because different manufacturing sections operate at different times, the diversity factor is greater than 1.0, which allows engineers to size main switchgear and upstream transformers below the sum of the individual maximum loads:

Diversity Factor=Coincident Maximum Demand of the Entire Facility∑(Individual Maximum Demands)

[cite: 7]

The load factor measures energy utilization efficiency over a given time frame. Industrial plants maintain load factors of 70% to 80% due to multi-shift operations, whereas residential load factors rarely exceed 15%:

Load Factor=Peak Demand Power (kW)Average Load Power (kW)

[cite: 7]

The loss factor is used to estimate losses in the distribution system based on the load factor:

Loss Factor=k⋅(Load Factor)+(1−k)⋅(Load Factor)2

[cite: 7]

In this equation, k is a constant determined by the load profile, typically ranging from 0.15 to 0.3. This relationship helps designers determine heating losses within cable raceways and switchgear enclosures. To illustrate the differences in power usage profiles, typical values for residential, commercial, and industrial operations are outlined below.

Load Classification	Typical Demand Factor	Typical Diversity Factor	Typical Load Factor
Residential / Domestic	70% – 100%	1.2 – 1.3	10% – 15%
Commercial Office	90% – 100%	1.1 – 1.2	25% – 30%
Heavy Industrial	85% – 90%	1.3 – 1.6	70% – 80%

Pillar 3: System Planning Cycles: Forecast, Analysis, and Mitigation

Developing an industrial power distribution plan is an iterative process divided into forecasting, analysis, and solution generation.

The Forecast Cycle

This initial phase involves gathering real-time field data and building load profiles based on the facility’s operating schedule. These profiles are assigned to the electrical network model to simulate operational scenarios, such as peak production, maintenance shutdowns, and emergency power transitions. This data is then used to allocate the forecasted electrical demand across the substation nodes.

The Analysis Cycle

Using the developed load profiles, engineers evaluate system capacity under normal and contingency states. This phase includes short-circuit, overcurrent protection coordination, power quality, and automation analyses to identify design gaps. Reliability studies utilize standard metrics such as the System Average Interruption Frequency Index (SAIFI) and the System Average Interruption Duration Index (SAIDI) to evaluate system performance.

The Solution Cycle

This phase addresses any issues identified during analysis. Designers develop mitigation strategies, such as adding redundant feeders or updating protective relay settings, and update the system models to verify the effectiveness of the solutions.

Pillar 4: Medium-Voltage Substation Design and Topologies

Industrial facilities typically receive utility power at medium-voltage levels ranging from 4.16 kV up to 34.5 kV. Transforming this utility voltage to usable utilization levels (typically 480 V/277 V three-phase for motor and heavy machinery loads, and 208 V/120 V for instrumentation, lighting, and general utility) requires robust substation design.

The physical layout and routing of electrical energy from the main substation to the sub-distribution panels and motor control centers (MCCs) determine both the redundancy and the cost-efficiency of the facility.

System Topology	Single-Point Reliability	Redundancy Level	Initial Cost Index	Preferred Industrial Application
Radial System	Low	None	1.0 (Baseline)	Standard ancillary plants and non-critical manufacturing facilities.
Primary Selective	Medium	Feeder Level Only	1.5	Process industries where utility outages must be bypassed automatically.
Secondary Selective	High	Transformer and Bus Level	2.2	Continuous-process manufacturing, pharmaceuticals, and automotive plants.
Spot Network	Exceptionally High	Full Active Redundancy	3.5	Data centers and critical manufacturing requiring uninterrupted power.

The selection of transformer technology is critical. Designers must choose between dry-type and mineral-oil-immersed transformers based on environmental considerations, fire risk, and location. Mineral-oil-immersed units feature excellent dielectric strength and thermal dissipation properties but represent a higher fire hazard, making them ideal for outdoor substations. Conversely, dry-type or cast-resin transformers are preferred for indoor installations due to their low flammability. Medium-voltage switchgear acts as the primary defense mechanism of the substation, utilizing vacuum or sulfur hexafluoride (SF6) circuit breakers to interrupt high-magnitude fault currents and isolate downstream distribution anomalies.

Pillar 5: Computer-Based Modeling in Electrical Power Distribution Planning for Industrial Facilities

The structural complexity of modern industrial networks requires the implementation of computer-aided software for electrical power distribution planning for industrial facilities. Platforms such as Eaton’s CYME or ETAP allow engineers to build a digital twin of the entire power system. This model stores system data and automates complex analyses.

Using these modeling tools, power systems engineers run load flow analyses to confirm voltage profiles remain within standard tolerance limits under all operating configurations. Transient dynamics, such as starting large medium-voltage motors, are simulated to assess and mitigate voltage sags that could affect sensitive electronic equipment. Protection and relay coordination studies are also conducted using these software suites, allowing engineers to verify system coordination and ensure proper fault isolation.

Pillar 6: Overcurrent Protection, Fault Calculations, and Coordination

Sizing protective devices and ensuring selective coordination requires calculated short-circuit fault currents across the system. During a short circuit, rotating machines (both synchronous and induction motors) act as generators and contribute fault current. The system impedance model must factor in the sub-transient reactance (Xd′′) and transient reactance (Xd′) of these machines to determine the initial symmetrical fault current:

Isc=3⋅ZtotalVLL

[cite: 14]

Where:

• VLL is the nominal line-to-line voltage at the point of the fault.
• Ztotal represents the total system impedance, combining transformer resistance, cable resistance, and sub-transient machine reactances.

This calculated fault current determines the required interrupting ratings for downstream switchboards and motor control centers.

Selective coordination ensures that downstream overcurrent devices trip before upstream breakers, isolating faults to the affected branch. Circuit breaker trip profiles are divided into three operating regions:

• Long-Time Delay: Provides overload protection, allowing minor overcurrents for a specified duration to accommodate motor-starting transients.
• Short-Time Delay: Provides coordination margins during moderate fault conditions, allowing downstream fuses or smaller breakers to clear the fault first.
• Instantaneous: Trips the circuit breaker with zero intentional delay under high-magnitude magnetic faults to minimize equipment damage.

Designers must balance selective coordination with rapid arc-fault clearing times to mitigate hazards to personnel. If upstream protective devices are set with long delays to ensure coordination, the arc-flash incident energy increases significantly. Engineers use technologies such as arc-flash reduction maintenance switches (ARMS), zone selective interlocking (ZSI), or optical arc-detection systems to maintain both safety and selective coordination.

Pillar 7: Power Factor Optimization and Reactive Power Management

Industrial plants contain numerous inductive loads, such as induction motors and transformers, which require reactive power (Q, measured in kVAR) to establish magnetic fields. This reactive power does not perform useful work but must be supplied by the electrical distribution system. The relationship between active power (P, measured in kW), reactive power (Q, measured in kVAR), and apparent power (S, measured in kVA) is represented by the standard power triangle:

S=P2+Q2

Power Factor (PF)=SP=cos(θ)

A low power factor increases line currents, causing voltage drops, elevated thermal energy losses within the conductors (I2R), and utility billing penalties. Sizing shunt capacitor banks is essential to optimize power factor. Sizing shunt capacitor banks to improve the power factor from an initial angle (θ1) to a target angle (θ2) is calculated as follows:

Qcap=P⋅(tan(θ1)−tan(θ2))

[cite: 23]

Designers can specify centralized, group, or localized capacitor placement. Localized capacitor placement at the motor terminals provides the greatest benefit by reducing current flow throughout the upstream distribution network. However, if capacitors are connected directly to the output of variable frequency drives (VFDs), it can result in component failure. Under these conditions, detuned capacitor banks equipped with series reactors must be used to prevent harmonic resonance.

Pillar 8: Harmonic Distortion Control and Power Quality

The widespread adoption of non-linear power electronic loads in industrial facilities—such as VFDs, uninterruptible power supplies (UPS), arc furnaces, and electronic switch-mode power supplies—creates high-frequency harmonic currents. These harmonics distort the fundamental 60 Hz voltage waveform, leading to power quality anomalies. Total Harmonic Distortion (THD) measures the level of harmonic pollution in the distribution system:

THDI=I1∑h=2∞Ih2⋅100%

Where:

• I1 is the RMS value of the fundamental current component.
• Ih represents the RMS value of the individual harmonic current components.

High THD causes severe operational problems in industrial plants:

• Transformer Overheating: High-frequency harmonic currents cause elevated eddy current and stray load losses, requiring transformers to be derated using K-factor calculations.
• Neutral Conductor Overloading: Triplen harmonics (3rd, 9th, 15th) do not cancel out in a three-phase system; instead, they add up in the neutral conductor, potentially causing overheating and fires.
• Nuisance Tripping: Harmonic distortion can corrupt sensitive control signals, causing protective relays and circuit breakers to trip unnecessarily.
• Resonance: Parallel resonance between power factor correction capacitors and the system’s inductive reactance can amplify harmonic currents, leading to capacitor failure and voltage spikes.

To mitigate harmonic issues, designers conduct computer-aided harmonic load flow studies. Mitigation techniques include utilizing multi-pulse (12-pulse or 18-pulse) VFD rectifiers, installing passive notch filters designed to trap specific harmonic frequencies, or employing Active Power Filters (APFs) that dynamically inject neutralizing currents to cancel out load-generated harmonics.

Pillar 9: System and Equipment Grounding Configurations

Grounding is a critical component of industrial power distribution planning, serving to protect human life, safeguard equipment, and stabilize system voltages. Design engineers must address two distinct grounding domains: system grounding and equipment grounding.

System grounding refers to the electrical connection between the neutral point of a power source (such as a transformer or generator) and the earth. Designers select from three primary grounding topologies:

Solidly Grounded Neutral

The neutral point is connected directly to the earth with no intentional impedance. While this configuration stabilizes phase voltages relative to ground and simplifies fault detection, a single line-to-ground fault creates massive ground-fault currents, requiring immediate automatic tripping of the circuit breaker. This interrupts continuous production processes, which can be highly disruptive in process industries.

Ungrounded System

The system has no physical connection to the earth. If a single phase faults to ground, the system can continue to run safely without tripping the circuit breaker, as there is no complete loop for the fault current to flow back to the transformer neutral. However, ungrounded systems are highly susceptible to severe transient overvoltages (reaching up to six times the nominal voltage) caused by intermittent arcing ground faults, which can degrade motor and cable insulation.

High-Resistance Grounding (HRG)

The neutral is connected to earth through a high-precision grounding resistor. This resistor limits ground-fault currents to extremely low levels (typically 5 A to 10 A), preventing the escalation of destructive arc-flash energies during a fault. Under a single line-to-ground fault, the system continues to run safely without tripping the circuit breaker, allowing plant operators to locate and clear the fault during scheduled maintenance shutdowns. This represents the ideal grounding topology for continuous-process industrial operations.

Equipment grounding, governed by the guidelines in IEEE Std 142-2007, focuses on bonding all non-current-carrying metal enclosures, structural steel, and motor frames into a continuous ground grid. This ensures that if an insulation failure occurs, the metallic frames remain at ground potential, preventing electric shock hazards to personnel. To verify ground grid performance, engineers must perform ground resistance measurements using the Fall-of-Potential method to confirm that the grid resistance to earth remains below 1.0 Ω in industrial environments.

Pillar 10: Thermal Integration and MEP Design Synergies

Electrical planning must be coordinated with mechanical and thermal systems. Electrical equipment generates significant heat, which must be offset by cooling systems designed using a professional HVAC layout plan. Sizing mechanical systems to handle the heat losses from transformers, VFDs, and switchgear requires calculating heat transfer (q) using the fundamental Fourier conduction equation:

q=U⋅A⋅ΔT

[cite: 5]

Where:

• q represents the conductive heat transfer rate (Btu/h or W).
• U is the thermal transmittance of the enclosure walls (Btu/h⋅ft2⋅∘F or W/m2⋅K).
• A is the wall surface area (ft2 or m2).
• ΔT is the temperature difference across the interior and exterior environments (∘F or K).

Once the sensible internal heat gains from the electrical equipment are determined, the volumetric cooling airflow requirement (CFM or L/s) is calculated:

qsensible=1.08⋅CFM⋅ΔTair

[cite: 5]

Where:

• CFM is the required volumetric airflow rate in cubic feet per minute.
• ΔTair is the difference between the supply air temperature and the room design setpoint.

To reduce operational energy costs, cooling fans use VFDs. According to the fan Affinity Laws, the fan power consumption is proportional to the cube of its operating speed. Reducing the motor speed from 100% to 75% via VFD control yields a 57.8% reduction in electrical energy consumption, supporting energy efficiency goals.

Consulting specialized electrical engineering services is crucial for coordinating these cooling calculations with the electrical design.

Actionable Recommendations for Industrial Facility Planners

Successful electrical power distribution planning requires a systematic approach to design, compliance, and multi-system integration:

• Select Grounding and Topology Based on Downtime Costs: For facilities where even momentary outages cause severe production losses, secondary selective topologies should be specified alongside high-resistance grounding (HRG). This combination prevents single line-to-ground faults from tripping critical manufacturing processes while maintaining overcurrent protection.
• Conduct Coordinated Studies Early: Complete short-circuit, selective coordination, and arc-flash hazard assessments early in the design cycle. Doing so ensures that switchgear ratings are sized correctly and that relay settings are optimized before hardware procurement.
• Integrate Thermal Management with Electrical Design: Use the Fourier conduction equation and volumetric airflow formulas to coordinate cooling system capacities with the electrical heat loads. Sizing HVAC layouts based on electrical room heat dissipation requirements prevents premature component failure due to thermal stress.
• Implement Harmonic Control Measures: In facilities with extensive VFD or nonlinear load utilization, specify 18-pulse rectifiers or active power filters to control harmonic distortion. This mitigates power quality issues, transformer overheating, and neutral conductor overloading.
• Establish a Digital Twin Model: Develop and maintain a computer-aided network model using CYME or ETAP. This digital model serves as a living document of the system, enabling the safety, efficiency, and feasibility of future plant expansions to be verified.
