10 Critical Engineering Pillars of HVAC Load Calculation Services | Precise Thermal & BTU Sizing

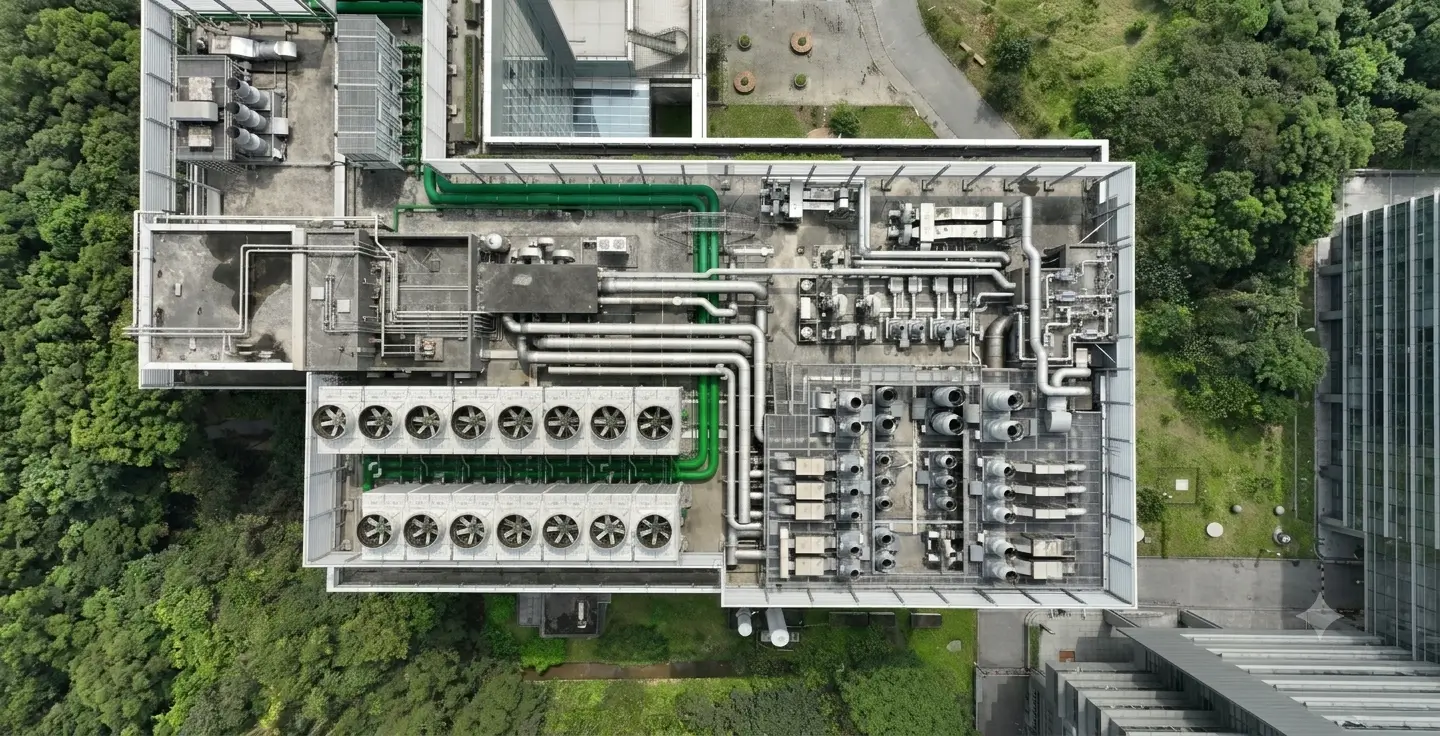

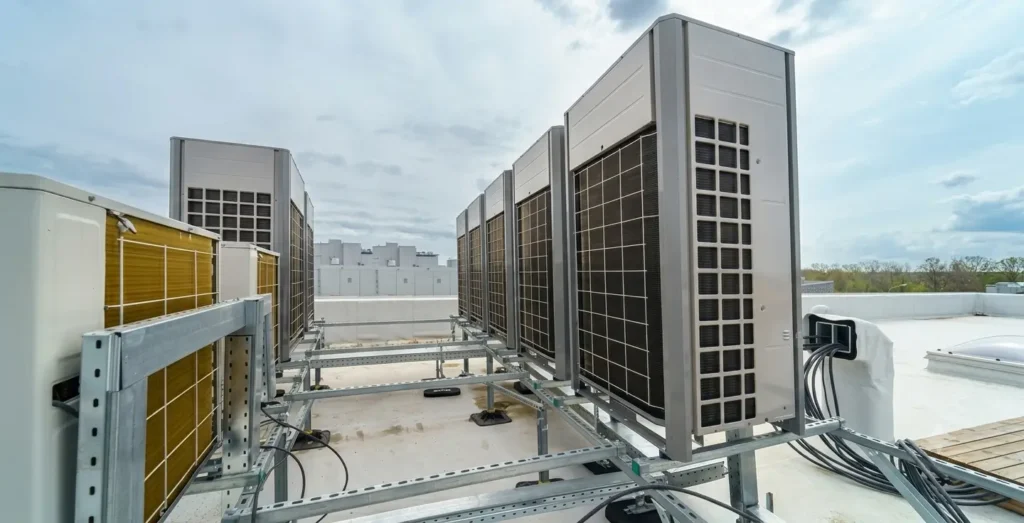

In contemporary building design and MEP, HVAC Load Calculation Services establish the quantitative foundation for indoor environmental safety, system longevity, and operational energy efficiency. Globally, the built environment accounts for nearly 40% of total energy consumption, with mechanical heating, ventilation, and air conditioning (HVAC) systems representing 60% to 70% of a building’s total electrical footprint. Consequently, precise thermal load analysis is far more than a routine regulatory requirement for permit approval; it is an engineering discipline that dictates long-term capital expenditure, lifecycle maintenance costs, indoor air quality, and decarbonization trajectories.

Relying on legacy rules of thumb—such as assigning a generic square-footage value per ton of refrigeration—introduces severe systemic risks into building operations. Standardized spatial ratios fail to account for modern building envelope performance, variable occupancy schedules, dynamic fenestration solar heat gain coefficients (SHGC), equipment plug load densities, or localized microclimates. The resulting equipment mis-sizing leads to chronic short-cycling, unhandled latent humidity loads, indoor air quality failure, and inflated operational budgets. This research report provides a technical examination of thermodynamic heat transfer principles, internal and external load vectors, equipment sizing dynamics, digital Building Information Modeling (BIM) workflows, multi-disciplinary MEP integration, and specialized environmental considerations in coastal and historic projects.

Thermodynamic Principles Governing HVAC Load Calculation Services

Sensible versus Latent Heat Transfer Dynamics

Thermal load calculations require the simultaneous evaluation of sensible heat gains, which increase dry-bulb air temperature, and latent heat gains, which elevate moisture content and specific humidity. Professional thermal calculation services model both thermal transport mechanisms across varying external ambient conditions and dynamic internal usage schedules.

Sensible thermal energy enters a conditioned space via conduction through opaque structural assemblies, convection at interior surfaces, and direct solar radiation through fenestration. The fundamental equation governing sensible thermal transport through volumetric airflow movement is:

Qsensible = 1.08 × CFM × (Tindoor − Toutdoor)

In this equation, Qsensible represents the sensible thermal transfer rate in British Thermal Units per hour (BTU/hr), CFM denotes the volumetric airflow rate in cubic feet per minute, and ΔT = (Tindoor − Toutdoor) represents the dry-bulb temperature differential across the building boundary. The constant 1.08 is derived mathematically from the density of standard air (0.075 lb/ft³), the specific heat capacity of dry air (0.24 BTU/lb·°F), and a time conversion factor (60 min/hr).

Latent thermal gains result from human metabolic moisture release, ambient moisture infiltration through envelope defects, specialized commercial processes, and fresh ventilation air introduction. The mathematical expression governing latent moisture transport is:

Qlatent = 4840 × CFM × (Woutdoor − Windoor)

Here, Qlatent is the latent thermal exchange rate in BTU/hr, while ΔW = (Woutdoor − Windoor) represents the humidity ratio differential expressed in pounds of water vapor per pound of dry air (lbw/lbda). The constant factor 4840 incorporates standard air density, the latent heat of vaporization of water (approximately 1061 BTU/lb), and time unit conversions.

The total enthalpy differential (Qtotal) across a mechanical cooling coil reflects combined sensible cooling and moisture removal:

Qtotal = 4.5 × CFM × (houtdoor − hindoor)

Where h represents the specific enthalpy of the moist air mixture measured in BTU/lb of dry air. Conductive thermal gains through opaque exterior assemblies (roofs, exterior walls, heavy masonry) account for structural thermal storage capacity via the Cooling Load Temperature Difference (CLTD) methodology:

Qconduction = U × A × CLTD

Where U is the overall thermal transmittance coefficient (BTU/hr·ft²·°F), A is the exterior surface area (ft²), and CLTD is a corrected temperature differential that adjusts standard indoor-outdoor ΔT values for masonry mass, solar absorption, and thermal time lag.

Direct and diffuse solar radiation through transparent fenestration is calculated using:

Qsolar = A × SHGC × IAC × CLF

Where SHGC represents the Solar Heat Gain Coefficient, IAC is the Indoor Shading Coefficient, and CLF is the Cooling Load Factor, which models the time delay between radiant energy absorption by internal structural masses and its subsequent convective release into room air.

ACCA Manual J/N and ASHRAE Calculation Methodologies

Engineering standards for thermal estimation differ significantly between residential and commercial occupancies. ACCA Manual J governs single-family and low-rise residential structures, whereas ACCA Manual N and ASHRAE Heat Balance (HB) or Radiant Time Series (RTS) methods govern multi-family, commercial, and healthcare facilities.

Calculation Parameter	Residential Standards (ACCA Manual J)	Commercial Standards (ASHRAE RTS / ACCA Manual N)	Healthcare Facilities (ASHRAE Standard 170)
Occupancy Profiles	Static low-density profiles (typically 2–6 occupants per dwelling unit).	Dynamic multi-zone schedules accounting for shift changes and meeting rooms.	High continuous occupancy with strict isolation and surgical suite requirements.
Ventilation Baselines	Controlled air infiltration combined with baseline mechanical exhaust per ASHRAE 62.2.	High fresh outdoor air supply driven by occupant density and floor area per ASHRAE 62.1.	High air-change rates (up to 20+ ACH) with 100% outdoor air mandates in specialized zones.
Internal Plug Loads	Baseline appliance defaults and standard residential lighting power allowances.	Heavy internal heat gains from computer servers, office equipment, and lighting densities.	High heat rejection from medical imaging, surgical lighting, and sterilization equipment.
Diversity Application	Minimal diversity applied due to uniform spatial utilization.	Extensive diversity factors applied across lighting, equipment, and occupancy zones.	Strict zero-diversity enforcement on critical surgical and protective isolation zones.
Pressure Management	Neutral or slightly positive envelope pressure targets.	Zonal pressure balances designed to limit unconditioned air infiltration.	Precise directional pressure gradients (positive/negative) for infection control.

Analyzing Envelope and Internal Heat Vectors in HVAC Load Calculation Services

Building Envelope Thermal Dynamics

The building envelope serves as the thermal boundary regulating conductive, convective, and radiant exchange between outdoor weather conditions and conditioned interior spaces. Accurate load modeling depends on calculating assembly thermal transmittance coefficients (U-values), defined as the mathematical inverse of the cumulative thermal resistance values (Rtotal) of all material layers:

U = 1 / (Rfilm, inside + ΣRmaterials + Rcavity + Rfilm, outside)

Thermal mass plays a critical role in heavy exterior assemblies such as insulated concrete forms (ICF), multi-wythe brick, and structural tilt-up concrete panels. High-mass assemblies absorb solar radiation during peak daylight hours, storing thermal energy within their material structures and re-radiating that heat hours later when ambient temperatures drop. This phenomenon, known as thermal time lag, dampens peak instantaneous cooling loads and shifts the peak mechanical demand away from solar noon.

Uncontrolled air infiltration through structural gaps, envelope penetrations, and door openings introduces significant sensible and latent thermal loads. Infiltration rates are quantified through blower door pressurization testing (ACH50) or calculated using empirical models like the Sherman-Grimsrud infiltration framework, which incorporates real-time indoor-outdoor temperature differentials and local wind speed factors.

Internal Heat Dissipation Vectors

Internal heat loads generated within conditioned spaces add directly to the net cooling load. These heat gains are categorized into three primary vectors:

Metabolic Human Heat Dissipation: Human thermal output varies according to metabolic activity level. A seated office worker dissipates approximately 250 BTU/hr sensible heat and 200 BTU/hr latent heat (450 BTU/hr total), whereas an individual engaged in heavy physical exercise releases up to 635 BTU/hr sensible and 965 BTU/hr latent heat (1600 BTU/hr total).

Artificial Lighting Thermal Conversion: Heat gains from electrical lighting are calculated using total connected wattage, usage factors, and luminaire allowance coefficients:

Qlighting = Wlighting × 3.412 × Ful × Fsa

Where Wlighting represents total connected lighting power in Watts, 3.412 converts Watts to BTU/hr, Ful is the lighting use factor, and Fsa is the luminaire special allowance factor (accounting for power supply and ballast heat losses in fluorescent or LED driver circuits). Calculating lighting thermal gains requires close alignment with electrical service schedules and National Electrical Code (NEC) panelboard calculations.

3. Equipment Plug Loads: Computers, data servers, cooking appliances, and industrial machinery dissipate continuous sensible heat into ambient air. Commercial kitchens require specialized heat gain evaluations that account for localized exhaust hood capture efficiencies and thermal radiation from appliances.

Fresh Air Ventilation and Humidity Management

To maintain indoor air quality and limit carbon dioxide volatile organic compounds (VOCs), and indoor air contaminants, building codes mandate minimum outdoor air ventilation rates per ASHRAE Standards 62.1 and 62.2. Introducing unconditioned outdoor air into the ventilation stream creates significant sensible and latent conditioning loads.

In hot, humid climates, untreated outdoor ventilation air can account for over 50% of the total latent load placed on a cooling coil. To prevent high indoor humidity without overcooling interior spaces, modern mechanical engineering separates fresh air treatment from indoor sensible cooling using Dedicated Outdoor Air Systems (DOAS). A DOAS unit cools incoming outdoor air below its dew point to strip moisture before delivering neutral, dry air to parallel sensible terminals (such as VRF fan coil units or active chilled beams).

The Systemic Risks of Improper Equipment Sizing in HVAC Load Calculation Services

The Operational Penalties of Equipment Oversizing

A persistent issue in mechanical system design is over-sizing equipment based on arbitrary safety margins or outdated rule-of-thumb estimates. Oversized equipment introduces major operational, financial, and environmental problems:

• Compressor Short-Cycling: Oversized equipment satisfies room dry-bulb temperature setpoints rapidly. As a result, the system satisfies the thermostat and shuts down before the cooling coil reaches a steady condensation state. Moisture remains suspended in room air, driving relative humidity above 60% to 65%, creating humid indoor conditions, and encouraging mold and fungal growth.
• Excessive Capital Outlay and Energy Demand: Specifying equipment capacity beyond true peak thermal requirements increases initial equipment procurement costs for larger chillers, compressors, electrical service panels, and distribution ductwork. Additionally, frequent motor starting cycles draw high electrical inrush currents, increasing utility peak demand charges and accelerating contactor and motor winding wear.

The Risks of Equipment Undersizing

Conversely, specifying equipment below peak thermal requirements leads to system failure during peak cooling conditions. When outdoor temperatures reach maximum design thresholds, undersized equipment operates continuously without satisfying space cooling setpoints.

Continuous operation under overload conditions elevates compressor motor winding temperatures, trips electrical overload breakers, accelerates mechanical failure, and results in tenant complaints and code non-compliance.

Integrating HVAC Load Calculation Services with Full-Scope MEP Engineering

Mechanical-Electrical Coordination and Panelboard Schedules

HVAC load calculations directly inform downstream electrical engineering requirements. Mechanical compressors, condenser fans, pump motors, and electric resistance reheat coils represent continuous electrical loads under the National Electrical Code (NEC).

Per NEC Article 210.20(A) and Article 210.19(A)(1), continuous loads—defined as applications operating continuously for three hours or more—must be calculated at 125% of their full load amperage rating when sizing overcurrent protective devices (OCPD) and feeder conductors.

When building an electrical panel schedule, electrical engineers rely on calculated peak mechanical kilowatts to perform panelboard phase balancing across Phase A, Phase B, and Phase C lines. Unbalanced motor loads across three-phase systems generate neutral conductor current flow, excessive wire insulation heating, voltage fluctuations, and premature step-down transformer degradation. Proper design ensures panelboard utilization remains within the 80% continuous operating safety margin mandated by NEC Article 408. Project managers seeking fully coordinated electrical systems can consult specialized Electrical Engineering Services to align thermal equipment sizing with main electrical distribution panels.

Airflow Mechanics and Duct Layout Optimization

Once net thermal loads are calculated, mechanical engineers calculate required supply airflow rates (CFM):

CFMspace = Qsensible, space / (1.08 × (Tspace − Tsupply air))

Where Tsupply air is typically designed at 55°F for standard chilled water or direct-expansion (DX) systems maintaining a 75°F room temperature setpoint (ΔT = 20°F).

The resulting supply airflow rates determine ductwork sizes, diffuser placement, and static pressure drop calculations across the distribution network. Using equal-friction or static-regain duct design methods, engineers map out supply, return, and exhaust duct layouts, ensuring air velocities remain within acceptable noise thresholds (e.g., 1,000 to 1,500 FPM in main commercial ducts and 600 to 800 FPM in branch ducts). Inaccurate load estimations compromise duct velocity profiles, causing high static pressure losses, motor overload, or excessive air noise. Detailed duct system routing guidelines can be explored through dedicated HVAC Layout Plan Services.

Building Infrastructure Coordination via Integrated MEP Plan Services

Mechanical systems do not operate in isolation; they interact continuously with structural elements, domestic water piping, sanitary drainage, and fire protection systems. Condensate drainage networks generated by cooling coil dehumidification must be sized, trapped, and sloped according to plumbing codes to prevent building water damage and indoor contamination.

Furthermore, boiler heating loads and domestic hot water production require unified energy modeling to optimize dual-fuel gas or heat pump system sizing. Teams seeking to coordinate mechanical, electrical, and plumbing engineering under a unified design framework can leverage MEP Plan Services offered by EngrTeam.

Advanced BIM Workflows and Clash Detection in HVAC Load Calculation Services

BIM-Driven Thermal Extraction and Dynamic Energy Simulation

Modern mechanical engineering uses Building Information Modeling (BIM) software, such as Autodesk Revit MEP, linked with advanced energy simulation engines like EnergyPlus, eQuest, and IESVE. BIM creates an integrated spatial environment where architectural geometry, material thermal properties, room volumes, and fenestration performance are extracted directly from the digital model.

This parametric connectivity reduces manual data entry errors, enabling dynamic hourly energy modeling that accounts for transient thermal conduction, internal diversity schedules, and complex exterior shading profiles.

Spatial Coordination and Multi-Disciplinary Clash Detection

Exporting load calculation results into 3D BIM coordination models enables comprehensive multi-disciplinary clash detection. Large mechanical ductwork, variable air volume (VAV) terminal units, chilled water pipes, and dedicated outdoor air ducts compete for limited overhead plenum space alongside structural framing, electrical cable trays, and fire sprinkler mains.

Using automated clash detection tools like Navisworks and BIM 360, engineers run spatial rule matrices that identify physical intersections (“hard clashes”) and clearance access violations (“soft clashes”) prior to field construction.

Clash Category	System Conflict Example	Virtual BIM Resolution Strategy	On-Site Non-Coordinated Result
Hard Clash (Physical)	Main 36 times 18 supply duct colliding with a structural steel wide-flange beam.	Reroute duct through pre-engineered web penetrations or divide into parallel smaller ducts.	Work stoppage, field beam cutting (compromising structure), or unapproved ceiling drops.
Hard Clash (Physical)	Hydronic chilled water line running directly through an electrical cable tray.	Adjust pipe elevation in 3D space to maintain required vertical clearance.	Electrical safety violations, pipe condensation dripping on power lines.
Soft Clash (Clearance)	VAV box controller casing installed tightly against a concrete shear wall.	Reposition VAV terminal to ensure 36-inch NEC maintenance working space.	Inaccessible control panel, failed municipal building inspection.
Soft Clash (Clearance)	Supply duct blocking access doors for fire damper actuators.	Reorient ductwork to maintain clear access paths for life-safety maintenance.	Life-safety non-compliance, costly post-construction drywall demolition.

Resolving spatial conflicts virtually during design takes minutes of engineering adjustments, whereas resolving the same conflict physically on the job site can lead to project delays, change orders, and wasted materials. Industry studies demonstrate that BIM clash detection workflows reduce field change orders by 30% to 40% and increase trade installation efficiency by 20% to 25%.

Regulatory Compliance and Sustainability in HVAC Load Calculation Services

Energy Code Enforcement and Sizing Limits

Modern building codes—including the International Energy Conservation Code (IECC) and ASHRAE Standard 90.1—establish strict energy efficiency standards for building design. These codes restrict arbitrary equipment over-sizing by capping design safety factors.

Under these standards, design engineers must limit safety factor multipliers to a maximum of 1.15 for sensible cooling capacity and 1.25 for heating capacity over calculated peak loads. Adhering to these safety margins requires precise calculation documentation during building permit application reviews. Detailed technical design standards are published through ASHRAE Technical Resources.

Supporting LEED v4.1 Certification and Net-Zero Goals

Precise thermal load calculations form the technical baseline for projects seeking Leadership in Energy and Environmental Design (LEED v4.1) certification through the USGBC. The Energy and Atmosphere (EA) category represents the largest block of available points in the LEED rating system.

Engineers run baseline energy simulations compliant with ASHRAE 90.1 Appendix G to demonstrate percentage energy cost reductions compared to standard baseline buildings. Accurate load calculations support sustainable outcomes by:

1. Reducing annual operational energy consumption and carbon emissions.
2. Facilitating the integration of high-efficiency systems, such as variable refrigerant flow (VRF), active chilled beams, and energy recovery ventilators (ERV).
3. Optimizing the sizing of on-site solar photovoltaic (PV) arrays and battery energy storage systems (BESS) to achieve net-zero energy targets.

Specialized Thermal Load Sizing for Adaptive Reuse and Coastal Marine Environments

Adaptive Reuse and Historic Structure Thermal Load Challenges

Repurposing historic or legacy buildings for modern commercial, residential, or multi-use occupancy introduces unique thermal modeling variables. Older structures often lack original architectural drawings, feature uninsulated multi-wythe masonry walls, and provide minimal overhead ceiling plenum space.

When performing HVAC load calculation services for historic adaptive reuse projects, engineers must address two main challenges:

• Thermal Inertia of Masonry Walls: Thick brick or stone walls delay heat penetration, as detailed in National Park Service (NPS) Preservation Brief 24. Applying standard steady-state heat transfer equations overestimates daytime peak cooling requirements. Dynamic load modeling must account for this thermal mass delay to prevent specifying oversized equipment.
• Architectural Preservation Boundaries: Historic plaster ceilings, decorative woodwork, and protected exterior facades prohibit standard ductwork installation. Calculations must evaluate decentralized variable refrigerant flow (VRF) systems or micro-duct distribution networks that preserve historic architectural features while meeting local cooling demand.

Coastal, High-Humidity, and Island Engineering Considerations

Executing mechanical engineering in coastal, marine, and tropical island environments introduces distinct severe conditions: high ambient relative humidity combined with corrosive atmospheric salt aerosols.

1. Corrosion Dynamics on Heat Exchanger Coils: Airborne salt spray contains chloride ions that form conductive electrolyte films on exposed metal surfaces. Galvanic corrosion accelerates quickly at contact points between dissimilar metals—such as copper refrigerant tubes mechanically expanded into aluminum cooling fins. Pitting corrosion penetrates thin copper tube walls, causing refrigerant leaks, capacity loss, and total equipment failure within 3 to 5 years if left unprotected.
2. Specialized Protective Coatings: To protect heat exchanger coils without restricting airflow or increasing static pressure drop, equipment operating in marine environments requires factory-applied protective coatings. Common treatments include Blygold PoluAl XT—a specialized polyurethane coating containing metallic aluminum pigments—and electro-deposition (ElectroFin E-Coat). These coatings withstand over 11,000 hours of continuous salt spray testing under ASTM B117 standards, extending equipment service life while maintaining heat transfer performance.
3. Island Jurisdictions and Regulatory Compliance: Island jurisdictions enforce specialized local building codes to address hurricane resistance, utility integration, and environmental protection. For example, in the Cayman Islands:
   • Building Control Unit (BCU) Regulations: The Department of Planning enforces compliance with the Cayman Islands Building Code (incorporating the 2021 International Building Code and International Mechanical Code standards), requiring structural wind-load verification for rooftop equipment and energy conservation documentation before issuing building permits.
   • On-Site Wastewater Regulations: The Water Authority-Cayman regulates wastewater discharge. Developments generating under 1,800 gallons per day (gpd) may use standard septic tanks, whereas developments generating ≥ 1,800 gpd must install mechanical Aerobic Treatment Units (ATUs) discharging treated effluent into deep disposal wells located at least 100 feet from surface water bodies.
   • Electrical Grid Interconnection Codes: The Utility Regulation and Competition Office (URCO) and Caribbean Utilities Company (CUC) oversee behind-the-meter solar PV and battery storage integration. Systems configured as Track 1 (Automatic Transfer Switch Air-Gap) or Track 2 (Parallel Non-Export with UL 1741 SB / IEEE 1547 anti-islanding protection and hardware-locked zero-export controls) allow building owners to self-consume renewable power safely while protecting grid stability and operator safety.

Conclusion: The Strategic Value of Professional Thermal Sizing

Precise thermal load calculations provide the technical foundation for modern, high-performance building engineering. Replacing crude rules of thumb with rigorous thermodynamic modeling ensures that mechanical, electrical, and plumbing systems operate with optimal efficiency, long-term reliability, and full code compliance.

By accurately evaluating Sensible and Latent heat gains, leveraging 3D BIM clash detection workflows, aligning continuous electrical loads with NEC panelboard schedules, and incorporating specialized protective measures for historic and coastal environments, engineers create resilient built environments that minimize lifecycle costs and maximize asset performance.
