10 Caribbean MEPF Engineering Services | Tropical Climate Design

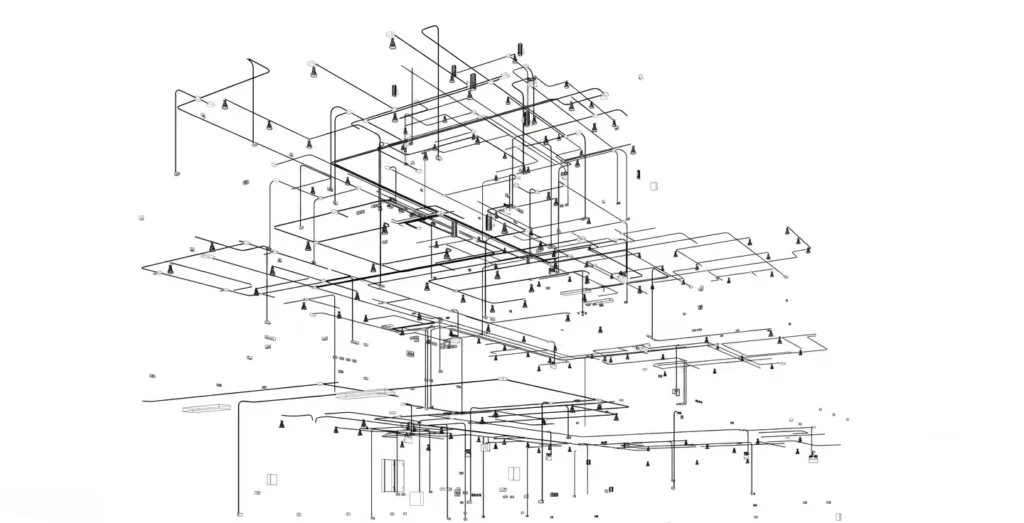

In tropical engineering, MEPF Engineering Services establishes the baseline for building safety, operational efficiency, and structural longevity. The convergence of extreme ambient temperatures, persistent relative humidity, corrosive saline sea spray, and hurricane-force wind zones requires a departure from standard mainland design templates. To achieve environmental resilience and commercial viability, engineers must utilize comprehensive MEP plan services from the earliest conceptual phases.

By coordinating mechanical, electrical, plumbing, and fire protection systems, designers can optimize building lifecycles and meet strict local codes. This report provides an expert-level technical analysis of the structural, thermodynamic, and electrochemical design methodologies required when executing MEP and fire protection projects across the Cayman Islands and the broader Caribbean basin.

Core Architectural Integration and MEP Design Cayman

The performance of any modern structure depends on the integration of its building systems into the architectural envelope. In the Caribbean, where structural forms must withstand high wind loads, physical space for building services is often restricted. If systems are not coordinated early, conflicts can arise with structural and architectural elements.

These conflicts can lead to on-site modifications that weaken structural elements or reduce ceiling heights. An integrated approach allows design teams to coordinate structural pathways and equipment placement, ensuring the building envelope supports natural cooling and daylighting.

Thermodynamic Sizing and HVAC Layouts in MEP Design Cayman

Mechanical cooling systems in the Caribbean typically account for 60 to 70 percent of a building’s total energy footprint. Standard design methods that rely on rule-of-thumb area-to-tonnage estimates often lead to over-sizing, resulting in short-cycling, elevated indoor humidity, and premature system wear.

To prevent these issues, engineers must develop a precise HVAC layout plan based on hourly load calculations.

To maintain indoor relative humidity within the standard 40% to 60% range recommended by ASHRAE technical standards, mechanical designs must account for a low Sensible Heat Ratio (SHR). The SHR is calculated using the following thermodynamic relationship:

SHR = Qsensible / (Qsensible + Qlatent)

Where Qsensible represents the thermal energy associated with temperature change, and Qlatent represents the energy associated with moisture removal. In high-humidity coastal zones where ambient relative humidity frequently exceeds 80%, the latent load increases significantly. This requires cooling coils with higher row depths and bypass configurations to optimize moisture condensation. The total cooling capacity (Qtotal) is calculated using psychrometric principles:

Qtotal = Qsensible + Qlatent

Qsensible = 1.08 × CFM × ΔT

Qlatent = 4840 × CFM × ΔW

Where CFM represents the volumetric airflow rate in cubic feet per minute, ΔT is the dry-bulb temperature differential across the coil in degrees Fahrenheit, and ΔW is the humidity ratio differential in pounds of moisture per pound of dry air.

Integrating Dedicated Outdoor Air Systems (DOAS) is highly effective in Caribbean designs. By separating the conditioning of ventilation air (handling the entire latent load of outdoor intake) from the indoor space conditioning (handling the internal sensible loads via variable refrigerant flow (VRF) or high-efficiency chilled water loops), engineers can prevent mold growth and maintain stable indoor air quality.

Integrating Electrical Engineering Services for Solar and Smart Grids under MEP Design Cayman

Caribbean power grids can experience voltage fluctuations and lightning strikes, requiring robust electrical systems. Designing modern electrical distribution systems in Grand Cayman requires specialized electrical engineering services that comply with both the National Electrical Code (NEC) and the Caribbean Utilities Company (CUC) transmission and distribution codes.

The expansion of Customer Self-Consumption (CSC) solar photovoltaic and battery storage systems has redefined the grid interface. Under regulatory rules established by the Utility Regulation and Competition Office (OfReg), consumers have the legal right to install behind-the-meter generation without seeking export-based utility approval, provided the system does not feed energy back into the CUC network.

Electrical engineers must plan the grid interface utilizing one of two pathways:

• Track 1 (ATS Air-Gap Systems): These configurations operate utilizing an Automatic Transfer Switch (ATS) to physically isolate the customer’s solar/battery generation from the CUC grid. Because an physical air-gap exists, there is zero risk of parallel synchronization or back-feeding. CUC does not treat these as utility-interconnected sources, meaning they are excluded from parallel-operation codes but still require notification and standard safety disconnects.
• Track 2 (Parallel Non-Export Systems): These systems maintain continuous electrical contact with the CUC grid, operating in synchronization. To comply with the CUC Connection Code and IEEE 1547 standards, Track 2 systems must integrate certified UL 1741 SB smart inverters, a hardware- and firmware-locked 0 kW Power Control System (PCS), and a physical reverse-power relay backup to prevent accidental energy export.

For both pathways, the installation of a highly visible, lockable, air-gapped physical safety disconnect switch is mandatory. This allows utility technicians to isolate the system during emergencies or grid maintenance.

Electrical designs must also ensure balanced phase configurations. Unbalanced phases induce neutral current loops, overheating transformers and causing voltage sags across sensitive electronics. The phase imbalance percentage must be maintained below 10%, calculated as follows:

Imbalance % = ((Max Load − Min Load) / Max Load) × 100%

For unbalanced multi-phase systems, the resulting neutral current (In) is computed via vector summation:

In = √(IA² + IB² + IC² − IA × IB − IB × IC − IA × IC)

Where IA, IB, and IC represent the current loads across Phase A, Phase B, and Phase C, respectively.

Advanced Wastewater and Plumbing Systems in MEP Design Cayman

Plumbing design in the Cayman Islands is strictly governed by the Water Authority-Cayman regulations and local environmental conservation mandates. Because fresh groundwater resources are extremely limited, almost all public potable water in Grand Cayman is generated via industrial Seawater Reverse Osmosis (SWRO) desalination plants. This high-cost process makes water conservation and efficient plumbing systems key design criteria.

Wastewater management is divided between properties within the West Bay Beach Sewerage System (WBBSS) service corridor and those outside it. For properties outside the public sewer grid, on-site sewage treatment sizing determines the design pathway:

Estimated Daily Waste Flow (gpd)	Required System Classification	Secondary Treatment Needed?	Minimum Effluent Disposal Pathway	Regulatory Review Authority
< 1,800 gpd[cite: 28]	Septic Tank System	No (Primary settlement only)	Deep Disposal Well (Treated effluent discharged above water table)	Water Authority-Cayman & Department of Planning
1,800 gpd[cite: 28]	Aerobic Treatment Unit (ATU)	Yes (Mechanical aeration & biological digestion)	Deep Disposal Well (Effluent must enter well feet above water table)	Water Authority-Cayman & BCU

If wastewater flows are estimated to be 1,800 gpd or higher, Aerobic Treatment Units (ATUs) are required. These units mechanically introduce dissolved oxygen to sustain aerobic bacterial colonies, accelerating organic decomposition and significantly reducing Biological Oxygen Demand (BOD) and Total Suspended Solids (TSS). Sizing is calculated based on estimated peak daily loads across all development zones on the parcel.

Treated effluent from septic or aerobic systems must be discharged into a deep disposal well. Sizing of the well depends on flow rate, but the discharge pipe must enter the disposal well at a height of at least two feet above the water table level to prevent backup. The entire on-site system must maintain a minimum horizontal distance of 75 feet from any potable well and 100 feet from the mean high water line of any natural water body.

Plumbing drainage depends on gravity-driven slopes. Under the Cayman Islands custom building code and standard plumbing practices, pipe slope must be maintained consistently to prevent solids deposition while avoiding excessively high velocities that leave solids behind. Drainage slopes are calculated as follows:

Slope % = (Vertical Fall / Horizontal Length) × 100

The standard slope values for varying nominal pipe diameters are outlined below:

Nominal Pipe Diameter (mm)	Minimum Regulatory Slope	Equivalent Slope Percentage (%)	Calculated Vertical Drop per 10 m Run (mm)	Engineering Application
40–50 mm	1 in 30	3.33%	333 mm	Individual basin, sink, and fixture waste lines
75 mm	1 in 40	2.50%	250 mm	Waste branches and secondary stack headers
100 mm	1 in 57	1.75%	175 mm	Main soil stacks, toilet branches, and house drains
150 mm	1 in 100	1.00%	100 mm	Primary horizontal building sewers and external lines

Mitigation of Coastal Corrosion: A Specialized Mandate for MEPF Design Services in the Caribbean

Atmospheric corrosion along the coastlines of the Cayman Islands is highly aggressive. Sea spray aerosolizes chloride ions, which settle on exposed metal components. These ions form a highly conductive electrolyte film in the presence of high relative humidity, initiating rapid oxidation. Without mitigation, standard copper-aluminum heat exchangers, condensing units, and outdoor enclosures can degrade entirely within 3 to 5 years.

The primary types of corrosion that target MEP infrastructure in the Caribbean include:

• Galvanic Corrosion: Occurs when dissimilar metals—such as copper tubes in contact with aluminum fins—are exposed to a saline electrolyte. The more reactive aluminum acts as a sacrificial anode, corroding rapidly and causing the structural disintegration of the fins, which reduces heat transfer and increases energy demand.
• Pitting Corrosion: Chloride ions penetrate the passive oxide layer of metals, creating localized, microscopic pits. These pits deepen progressively, causing refrigerant leaks within the condenser coils and piping.
• Uniform and Crevice Corrosion: Slow, systemic degradation that occurs in shielded joints, fin connections, or unpainted cabinet enclosures where salt and moisture accumulate.

To combat these mechanisms, modern MEP design must incorporate specialized industrial coatings.

The industry benchmark for heat exchanger protection is Blygold treatment (specifically PoluAl XT). Blygold is a polyurethane-based coating infused with metallic aluminum pigments. It is applied uniformly at a dry film thickness (DFT) of approximately 0.003 inches (75 microns) to prevent any insulation effect on thermal conductivity or static pressure drops. This thin-film coating seals all metallic surfaces, shielding them from chemical reactions with chlorides.

According to ASTM B117 salt spray testing, Blygold-coated coils can withstand over 11,000 hours of continuous exposure without loss of performance. This treatment triples the operational lifespan of condenser units and reduces lifecycle energy degradation by up to 30%.

Other coatings, such as electro-deposition (E-coating) or the use of specialized copper-copper (Cu-Cu) coils, are also used to provide resistance in high-salinity conditions.

Regulatory Permitting and BCU Plan Examination Processes for MEP Design Cayman

Executing any substantial construction project in the Cayman Islands requires navigating a regulatory review process managed by the Department of Planning. This process is divided into two sequential phases: Planning Permission and Building Permit Verification.

During the Planning Permission phase, applications are submitted via the Online Planning System (OPS). This package is routed to several key government agencies for feedback:

• National Roads Authority (NRA): Reviews access points, storm-water drainage integration, and traffic flow.
• Water Authority-Cayman (WAC): Verifies the location of public water connections or calculates on-site wastewater treatment requirements based on project density.
• Department of Environmental Health (DEH): Audits kitchen grease trap designs, solid waste disposal facilities, and mechanical ventilation exhaust paths.
• Department of Environment (DoE) & National Conservation Council (NCC): Evaluates impacts on protected species and fragile coastal zones. For example, beachfront properties must install certified turtle-friendly lighting systems to prevent nesting disruptions.

Once cleared, the application is presented to the Central Planning Authority (CPA) on Grand Cayman or the Development Control Board (DCB) on the Sister Islands for official approval.

After Planning Permission is granted, the project shifts to the technical verification phase managed by the Building Control Unit (BCU). To obtain a Building Permit, developers must submit complete, construction-ready documentation, including detailed structural calculations, fire-separation schematics, and comprehensive MEP drawings.

Historically, the Cayman Islands operated under older regional codes. However, the International Code Council (ICC) collaborated with the Cayman government to publish the first custom, island-specific building code based on the 2021 International Codes (I-Codes).

The regulatory review checks compliance against:

• The Cayman Islands Building Code: Governing structural stability under hurricane winds up to 150 mph and seismic load criteria.
• The 2021 International Residential Code (IRC): For single-family and duplex residences.
• The 2021 International Mechanical Code (IMC): Governing ventilation rates, duct designs, and exhaust installations.
• The 2021 International Plumbing Code (IPC): Sizing wastewater lines, drainage vents, and grease separation systems.
• The NFPA 70 / National Electrical Code (NEC): Ensuring electrical systems, circuit panelboards, short-circuit protection, and ground-fault protection meet safety criteria.

Incorporating BIM and Clash Detection into MEPF Design Services in the Caribbean

Caribbean projects often have tight spatial footprints and complex multi-disciplinary systems. This makes Building Information Modeling (BIM) and automated clash detection essential engineering tools to prevent design errors from reaching the field.

Using platforms like Autodesk Revit and Navisworks, engineers construct models of ductwork, piping, structural beams, and electrical conduits. Automated clash detection evaluates these systems to identify physical overlaps (hard clashes) and clearance conflicts (soft clashes).

For complex projects, such as resort hotels, hospitals, and high-density condominiums, utilizing BIM and clash detection delivers key advantages:

• Rework Prevention: Resolving conflicts digitally before physical construction begins eliminates site downtime and material waste. Industry data indicates that resolving a clash virtually takes minutes, whereas resolving the same conflict physically on-site can account for up to 30% of total construction cost overruns.
• Optimized Sequencing: Integrating the project schedule with the 3D model (4D BIM) allows contractors to plan the exact order of installations. This prevents trades from blocking access routes or installing components out of order.
• Accuracy in Prefabrication: Exact dimensional coordination supports the off-site prefabrication of ductwork and plumbing assemblies. Prefabrication accelerates construction timelines and improves installation quality.
• Long-Term Facility Management: The coordinated model is handed over to the owner as a digital twin, containing maintenance histories, serial numbers, and exact structural paths to support future renovations.

To realize these benefits, engineers and contractors must establish a comprehensive BIM Execution Plan (BEP) at the project kickoff. This digital coordination framework is supported by detailed MEP plan services to ensure all digital assets are buildable.

Retrofitting, Adaptive Reuse, and Legacy Integration in MEP Design Cayman

The Cayman Islands built environment is increasingly shifting toward adaptive reuse. This practice repurposes historical structures, old commercial plazas, or industrial warehouses for modern hospitality or residential uses. Upgrading these legacy structures requires creative engineering to integrate high-efficiency MEP systems without damaging historic architecture or compromising structural integrity.

Integrating contemporary systems into historic buildings presents unique challenges:

• Spatial Constraints: Historic designs lack dropped ceilings, vertical shafts, or dedicated mechanical rooms, leaving minimal space for routing ductwork or plumbing.
• Structural Limitations: Thick load-bearing masonry walls resist core drilling for conduits and pipes. Unreinforced structural elements may struggle to support heavy roof-mounted chillers or water heaters.
• Moisture and Building Envelope Dynamics: Old buildings are often constructed with permeable, historic materials that allow the building to naturally ventilate. Retrofitting high-efficiency HVAC without correcting envelope issues can trap moisture inside walls, causing rot and mold.

To address these challenges, engineers must follow the National Park Service (NPS) Preservation Brief 24 on heating, ventilating, and cooling historic buildings.

This brief details a systematic approach:

1. Initial Assessment and Energy Audit: Conduct a physical audit and diagnostic survey to map existing systems, utility lines, and structural capacities.
2. Preserve Character-Defining Spaces: Identify decorative plaster, historical woodwork, or exterior facades that must remain unaltered. Mechanical distribution paths must prioritize non-sensitive utility zones.
3. Select Compact and Flexible Systems: Implement decentralized, variable-capacity equipment such as VRF heat pumps or ductless mini-splits. These systems require minimal pipe penetrations and can be routed through crawlspaces or existing chimneys.
4. Maintain Natural Ventilation Features: Historic features like operable windows, transoms, and high thermal inertia walls should be integrated into the overall mechanical system design to reduce energy demand.

Multi-Scale Systems Analysis: Residential, Commercial, and Healthcare Demands for MEPF Design Services in the Caribbean

The complexity and scale of MEPF systems vary depending on the building classification. Designers must adapt their approach when transitioning between residential, commercial, and healthcare scales.

Table 5: Comparative Analysis of MEP Design by Scale

The table below contrasts key design variables across the three primary building scales, highlighting the technical shifts in sizing, load density, regulatory oversight, and mechanical systems:

Sizing Parameter	Residential MEP Scale	Commercial MEP Scale	Healthcare MEP Scale
Primary HVAC System Type	Split-system DX or localized mini-splits	Centralized chillers, VRF, or rooftop package units	100% Dedicated Outdoor Air Systems (DOAS) with HEPA filtration
Typical Electrical Service Rating	Single-phase, 120/240V, up to 200A	Three-phase, 120/208V or 277/480V, 800A to 4000A	High-voltage distribution, synchronized redundant diesel generation
Power Backup Requirements	Small standby generator or localized battery storage	Central generator for emergency lighting, life-safety paths	Double redundancy, uninterrupted power supply (UPS) for critical care zones
Typical Water Demand Sizing	Calculated based on standard fixture counts for single family	Sized for peak usage times and high-density restrooms	Sized for infection control and constant sterile supply
Ventilation Rates & Pressure Control	Natural ventilation with intermittent mechanical exhaust	Managed variable airflow based on carbon dioxide tracking	Strict air changes per hour (ACH) and precise room pressurization
Primary Code Focus	International Residential Code (IRC), basic NEC	International Building Code (IBC), NFPA 101, energy codes	ANSI/ASHRAE/ASHE Standard 170, strict healthcare regulations

At the residential scale, systems focus on affordability, ease of maintenance, and energy efficiency. Homeowners often seek sustainable solutions, such as solar panels, that reduce utility costs without sacrificing comfort.

At the commercial scale, systems must accommodate higher occupancy loads and varying usage patterns. This requires centralized mechanical systems, such as chilled water loops or multi-zone VRF systems, to maintain comfort across large spaces. Redundancy is also critical for commercial systems to prevent business disruptions during outages.

The healthcare scale represents the highest complexity in MEP design. Systems must maintain precise temperature, humidity, and pressure relationships to support sterile environments and prevent infection. This requires advanced filtration, specialized medical gas systems, and redundant backup power to ensure continuous operation.

Engineering Conclusions and Actionable Design Blueprints

Developing sustainable structures across the Cayman Islands and the wider Caribbean requires prioritizing resiliency and localized environmental planning over generic design templates.

The primary actionable recommendations for developers, architects, and engineers include:

• Prioritize Advanced Psychrometrics over Simple Sizing: Do not estimate cooling capacity. Use precise sensible and latent load calculations based on local design criteria. Incorporate DOAS configurations to control humidity and prevent mold growth.
• Design Grid Interconnections in Compliance with Local Rules: When designing solar and energy storage systems, ensure they match the CUC and OfReg regulations. Implement UL 1741 SB inverters and reverse-power relays for Track 2 systems, and install visible, lockable, air-gapped physical safety disconnects.
• Specify C5-M Corrosion Resistance for Coastal Areas: Protect all exposed condenser coils with industrial coatings like Blygold PoluAl XT. Early coating applications extend the lifespan of HVAC units and reduce energy degradation.
• Coordinate On-Site Waste Management Early: Outside the WBBSS sewer zone, determine wastewater treatment pathways based on estimated flow rates. Implement ATUs for systems producing 1,800 gpd and design disposal wells to discharge effluent well above the local water table.
• Utilize BIM and Clash Detection: Integrate architectural, structural, and MEP designs into a unified BIM model during the design phase. Run automated clash detection using Navisworks to resolve spatial conflicts virtually, avoiding costly on-site rework.

By partnering with professional engineering consultants at the Engrteam engineering firm and implementing these standards, developers can build durable, energy-efficient, and fully code-compliant structures that withstand the demanding conditions of the Caribbean environment.
