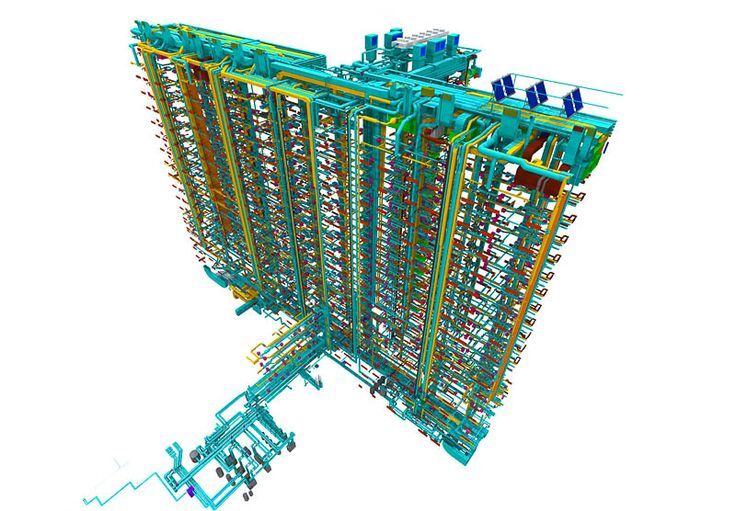

The 8 Critical Pillars of MEP Coordination for Office Tenant Improvements

Preparing MEP coordination for office tenant improvements is the single most critical factor in ensuring that modern commercial retrofits avoid structural failures, budget overruns, and scheduling conflicts. Office tenant improvements (TIs) involve reconfiguring existing commercial interior spaces to meet the specific aesthetic, operational, and structural needs of incoming or expanding occupants. Unlike raw, greenfield construction projects, tenant improvements require engineers and contractors to navigate the physical limitations of existing structural grids, fixed base-building mechanical plants, and highly constrained spatial envelopes. This engineering challenge demands a highly structured approach to integrating mechanical, electrical, and plumbing (MEP) systems.

By deploying comprehensive MEP plan services from the earliest design stages, project stakeholders can seamlessly transition from schematic concepts to code-compliant, physically constructible interior environments. The complexity of modern offices—featuring integrated smart technology, variable occupancy patterns, and stringent energy efficiency mandates—leaves zero margin for spatial or structural layout errors. Achieving vertical and horizontal alignment across separate building systems requires specialized expertise, precise calculations, and advanced digital modeling workflows.

Technical Challenges in MEP Coordination for Office Tenant Improvements

The strategic process of executing MEP coordination for office tenant improvements relies on identifying and resolving physical, operational, and logical conflicts before construction crews arrive on-site. When separate engineering disciplines design their respective systems in isolation, spatial collisions are mathematically guaranteed. This physical overlap often results in severe schedule friction and budget inflation, as resolving a single major spatial error in the field costs an average of $4,200. Operational data indicates that approximately $40\%$ of all construction RFIs are directly related to MEP conflicts, underscoring the necessity of proactive pre-construction coordination.

These coordination challenges typically fall into three distinct classifications of conflict, which the engineering team must systematically identify and resolve using unified spatial models:

Physical Intersections and Hard Clashes

The first classification involves hard clashes, which are direct physical intersections where two or more components attempt to occupy the exact same spatial coordinates. Typical examples in an office remodel include a primary supply air duct trying to pass through a structural concrete beam or a pressurized domestic water line overlapping a gravity-sloped sanitary drain. These conflicts require immediate rerouting and can impact structural integrity if penetrations are made without engineering approval.

Clearance Violations and Soft Clashes

The second classification comprises soft clashes, which occur when systems violate required physical clearance zones necessary for equipment maintenance, safety code compliance, or operational access. This is frequently observed when an electrical conduit line is routed directly in front of an HVAC VAV box access panel, preventing maintenance technicians from servicing the damper actuator, or when hot water piping is placed too close to cold water lines, causing thermal transfer.

Constructibility and Workflow Clashes

The third classification involves workflow and sequencing clashes, which are logical and scheduling conflicts that occur when the physical assembly sequence of one system prevents or heavily complicates the installation of another. An example is closing up a gypsum board ceiling assembly or a heavy structural bulkhead before fire sprinkler branch lines have undergone mandatory hydrostatic pressure testing and local code inspection.

Spatial Constraints and Routing Priorities in Overcrowded Ceiling Plenums

The horizontal space above an office ceiling grid, known as the plenum, is highly contested real estate. Ductwork, electrical conduits, domestic water lines, sanitary drains, data cables, and fire protection sprinkler systems must all coexist within a space that is often less than two feet deep. Without a pre-established hierarchy, subcontractors will route their systems on a first-come, first-served basis, leaving subsequent trades with impossible routing paths.

To prevent this, the coordination team must enforce a strict Routing Priority Matrix. This matrix is structured around a simple physical law: systems that are the hardest to move or are governed by unyielding physics must be placed first, while more flexible systems are routed around them.

System Priority	Building System Type	Physical Flexibility	Primary Routing Constraints	Typical Clearance & Code Requirements
Priority 1	Gravity Drainage (Sanitary & Storm)	Almost Zero Flexibility	Requires a continuous downward slope (typically $1\%$ to $2\%$ gradient). Cannot step up to avoid obstacles.	Must avoid electrical rooms, transformer vaults, and data closets directly overhead.
Priority 2	Large HVAC Supply & Return Ductwork	Low Flexibility	Large cross-sectional dimensions limit routing options. High static pressure drops occur at tight bends.	Requires thermal insulation thickness clearances and direct pathways to structural shafts.
Priority 3	Pressurized Piping (Domestic Water, Fire Sprinklers)	Moderate Flexibility	Can navigate obstacles using $90^{\circ}$ and $45^{\circ}$ elbows, but fluid friction loss increases with fitting density.	Sprinkler lines must maintain clearance relative to structural beams and light fixtures under NFPA 13.
Priority 4	Electrical Conduit & Cable Trays	High Flexibility	Can be bent, divided, or rerouted easily. Cable trays require direct overhead access for wiring.	Requires physical separation from hot water pipes to prevent conductor overheating and thermal damage.
Priority 5	Extra-Low Voltage (ELV) & Data Cabling	Extreme Flexibility	Very small profiles that can be routed through tightly packed interstitial spaces.	Must avoid proximity to high-voltage lines and electromagnetic fields to prevent signal interference.

Maintaining this vertical hierarchy ensures that structural penetrations are minimized. For instance, if a sanitary line must maintain a specific hydraulic slope, represented by:

$$S = \frac{h_f}{L}$$

where $S$ is the slope, $h_f$ is the vertical drop, and $L$ is the horizontal length, any attempt to force the line over a large mechanical duct would destroy the gravity-driven flow, resulting in systemic backup and structural contamination. Thus, the HVAC duct must be routed either below or around the sloped plumbing line.

Mechanical Engineering and Thermodynamic Airflow Optimization

When office layouts are reconfigured, the original thermodynamic assumptions of the base building HVAC system are completely altered. A space that previously served as an open-plan bullpen may be subdivided into several private offices, a large conference room, and a dedicated server room. Each of these spaces possesses vastly different sensible and latent heat loads, requiring a complete redesign of the optimized HVAC layout plan to maintain occupant thermal comfort and indoor air quality.

To execute this, mechanical engineers conduct localized heating and cooling load calculations using advanced simulation programs like the Hourly Analysis Program (HAP) or Trace 700. The heat transfer rate ($Q$) for each new zone is evaluated using the fundamental thermodynamic relationship:

$$Q = U \cdot A \cdot \Delta T + q_{internal}$$

where $U$ represents the overall heat transfer coefficient of the partition assemblies, $A$ represents the surface area, $\Delta T$ represents the temperature differential between zones, and $q_{internal}$ accounts for localized heat gains from personnel, computers, high-efficiency lighting, and localized machinery.

In highly dense areas like conference rooms, the design must incorporate dynamic variable air volume (VAV) terminal boxes that modulate airflow based on actual, real-time demand. These VAV boxes must be physically positioned in the ceiling grid during the coordination phase to ensure they are easily accessible for future servicing.

Furthermore, engineers must design the ductwork routing to minimize static pressure drops. High-velocity air moving through poorly configured ducts with sharp, uncoordinated offsets generates substantial noise and turbulence. Utilizing Revit MEP and AutoCAD, designers optimize the path of supply, return, and exhaust duct branches, selecting appropriate duct materials and sizing dampers to guarantee balanced air distribution to all diffusers.

Electrical Infrastructure Sizing and Power Distribution

Office renovations frequently demand a complete overhaul of the existing electrical distribution network. Modern corporate environments integrate extensive power demands, including dedicated workstations, centralized network server racks, variable LED lighting arrays, and localized kitchen appliances. To prevent localized panel overloads and voltage drops, the engineering team must formulate detailed professional electrical engineering services layouts.

The electrical layout design begins with the creation of a comprehensive Electrical Single Line Diagram (SLD). The SLD serves as the blueprint for how electrical power flows from the utility transformer down to the individual branch circuits. Engineers calculate the total connected load and apply appropriate demand factors to establish the panel board schedule. The total active power ($P$) in a three-phase system is calculated using the formula:

$$P = \sqrt{3} \cdot V_L \cdot I_L \cdot \cos(\theta)$$

where $V_L$ is the line-to-line voltage, $I_L$ is the line current, and $\cos(\theta)$ represents the power factor of the connected equipment. Overloading a commercial panel board can trigger catastrophic thermal events, making load balancing across the three phases an absolute priority during electrical layout design.

In addition to primary power routing, the electrical coordination must integrate smart lighting controls, daylight harvesting sensors, and low-voltage communication systems. Lighting layouts are engineered using DIALux software to verify that the planned luminaires provide optimal Lux levels across the working plane while complying with local energy codes. Cable trays carrying low-voltage telecommunication wiring must be physically coordinated with pressurized piping and mechanical ductwork to avoid electromagnetic field (EMF) interference and physical routing blockages.

Hydronic Systems and Wet Column Coordination in Office Tenant Improvements

Plumbing coordination for office tenant improvements presents a unique set of challenges because plumbing infrastructure is largely constrained by gravity drainage requirements. When a tenant wishes to install a new breakroom sink, executive restroom, or water-cooler station, these fixtures must be hydraulically tied into the building’s existing vertical wet columns.

Because horizontal waste piping requires a physical slope to transport solid and liquid waste effectively, the physical location of new plumbing fixtures is heavily limited by their distance from the main vertical stack. If a sink is located too far from the core wet column, the required downward slope ($1\%$ to $2\%$) will force the pipe to drop below the established ceiling grid of the floor below, creating an unacceptable aesthetic and spatial conflict.

To overcome these structural constraints, plumbing designers must perform precise riser calculations and isometric piping designs. In scenarios where gravity-fed drainage is physically impossible due to structural beams or slab limitations, engineers must coordinate the placement of specialized greywater pump systems or macerating toilets. These mechanical pumps require dedicated electrical connections, access panels, and localized venting, all of which must be mapped out in the coordinated MEP model to prevent on-site installation failures.

Fire Suppression and Sprinkler Head Relocation under NFPA 13

The reconfiguration of interior office partitions directly impacts the performance and compliance of the building’s automatic fire sprinkler system. Under standard fire protection codes, such as the NFPA 13 standard for sprinkler systems, sprinkler heads must be positioned to provide complete, unobstructed water spray coverage across the entire floor plate.

When new walls are erected to form offices or conference spaces, they create physical obstructions that can block the spray pattern of existing sprinkler heads, leaving dead zones that are vulnerable to rapid fire propagation. Consequently, office tenant improvements almost always require the physical relocation or addition of sprinkler heads.

During the MEP coordination process, the layout of the fire sprinkler branch lines must be precisely aligned with the new reflected ceiling plan (RCP). Sprinkler heads must maintain strict clearance distances relative to other ceiling elements, such as supply air diffusers, linear light fixtures, and structural beams.

Under NFPA 13 regulations, the vertical distance between the sprinkler deflector and the ceiling pad must be carefully maintained to ensure the thermal link activates rapidly in a thermal event. For standard pendant and upright sprinklers, this distance typically ranges from $1$ to $12\text{ inches}$:

$$1\text{ in} \le d_{deflector-to-ceiling} \le 12\text{ in}$$

This vertical clearance is critical; placing a deflector too far below the ceiling allows hot gas to bypass the thermal element, delaying sprinkler activation and threatening occupant life safety.

Energy Conservation Measures and Regulatory Adherence to ASHRAE 90.1

Commercial buildings are major consumers of energy, with HVAC and lighting systems accounting for approximately $76\%$ of electricity usage and $40\%$ of all primary energy use in the United States. To combat rising energy costs and mitigate greenhouse gas emissions, office tenant improvements must comply with stringent municipal energy codes, which are globally benchmarked against the standards developed under the ASHRAE Energy Efficiency Standards.

Compliance with ASHRAE Standard 90.1 (including the 2016, 2019, and 2022 editions) dictates specific energy conservation measures that must be integrated during the MEP design and coordination phases. These measures span several building systems:

Building Envelope Integration and Thermal Bridging

Even within interior tenant improvements, modifications to exterior-facing perimeter zones must account for thermal performance. The updated ASHRAE 90.1-2022 standard introduces strict requirements for mitigating structural thermal bridges in building envelopes. If a tenant improvement involves altering perimeter walls or installing large window assemblies, the design team must select materials that meet minimum R-values and utilize thermal break technologies to prevent heat loss or gain.

High-Efficiency HVAC Equipment and Controls

Standard 90.1 mandates high-efficiency ratings for all newly installed HVAC equipment, such as air-source heat pumps and variable refrigerant flow (VRF) systems. To optimize system performance, designs must incorporate smart thermostats and sophisticated Building Automation Systems (BAS).

Furthermore, the standard increases the stringency of nighttime temperature setbacks, requiring the system to lower heating setpoints to $60^{\circ}\text{F}$ during unoccupied hours to reduce thermal losses, while utilizing a “trim and respond” supply air temperature reset sequence to minimize fan horsepower and compressor energy draw.

Advanced Lighting Controls and Daylighting

Lighting power density (LPD) limits are strictly enforced under Standard 90.1, requiring the use of high-efficacy LED fixtures. Tenant improvements must integrate continuous dimming daylight-responsive controls in spaces close to perimeter windows, allowing the building to harvest natural daylight and automatically scale back artificial lighting output. Occupancy sensors with reduced control timeouts (dropping from 20 minutes to 10 minutes in recent editions) must be installed to turn off lights and close VAV boxes when spaces are vacant.

Implementing BIM Workflows for MEP Coordination for Office Tenant Improvements

The utilization of traditional, uncoordinated 2D CAD drawings for complex commercial retrofits is a highly inefficient approach that leads to high RFI rates, schedule delays, and expensive field modifications. Modern tenant improvement engineering relies heavily on 3D Building Information Modeling (BIM) to execute flawless spatial coordination.

Using advanced software suites such as Autodesk Revit, Navisworks Manage, and BIM 360, the Engineer’s Team compiles individual models from mechanical, electrical, plumbing, and structural designers into a unified, federated project model. This digital model acts as an exact virtual prototype of the finished office space.

BIM managers establish a detailed BIM Execution Plan (BEP) that defines the Level of Development (LOD) required for each component. For tenant improvements, systems are typically modeled to LOD 300 or LOD 400, which includes accurate physical dimensions, maintenance clearance zones, and precise spatial orientation.

Navisworks Manage is then used to run automated clash detection algorithms across the combined models. Rather than relying on human observation to spot overlapping elements, the software generates comprehensive clash reports, pinpointing every physical intersection and clearance violation down to the millimeter. The design team resolves these issues digitally, rerouting ducts, adjusting pipe elevations, and repositioning cable trays before a single piece of material is fabricated or shipped to the construction site.

Strategic Cost-Benefit Matrix of Proactive Coordination

To fully appreciate the value of investing in comprehensive MEP design and coordination services during the pre-construction phase, project stakeholders must evaluate the financial and operational risks of poor coordination. Research in the commercial construction sector indicates that mechanical, electrical, and plumbing systems account for $40\%$ to $60\%$ of total commercial building construction costs and generate roughly $40\%$ of all construction RFIs.

When spatial conflicts are not identified in the virtual design phase, they manifest during physical installation, stopping work and causing expensive on-site field fixes.

The financial and operational impacts of proactive coordination are detailed below, demonstrating the return on investment of early engineering intervention:

Key Performance Indicator (KPI)	Base Scenario (Uncoordinated/2D Coordination)	Optimized Coordination (3D BIM Coordinated)	Net Financial & Operational Impact
Average Cost per Field-Resolved Clash	$4,200 per major spatial collision (including material scrap, labor, and field redesign).	$0 (Clashes are identified and resolved digitally during design phase).	Savings: $100\%$ of potential field rework costs.
Total Project Rework Cost Percentage	Consumes $5\%$ to $15\%$ of the total MEP construction budget.	Reduced to less than $1\%$ of the total MEP budget.	Savings: Eliminates standard margin erosion and protects project contingency funds.
Average Schedule Delay from Major Failures	$3$ to $5$ weeks of cumulative project delay per major coordination failure.	$0\text{ weeks}$ (All systems fit seamlessly, ensuring steady field progress).	Operational Gain: Prevents lease activation delays and liquidated damage penalties.
Pre-Construction Duration & Effort	Short, uncoordinated design phase, leading to long, chaotic construction cycles.	Structured, highly collaborative $3$ to $5\text{ day}$ design turnarounds.	Operational Gain: Compresses overall project timelines and accelerates occupancy schedules.
System Energy Performance & Utility Costs	High energy consumption due to oversized equipment and sub-optimal duct routing.	Achieves up to $41\%$ energy and $43\%$ utility cost savings via optimized load designs.	Lifecycle Benefit: Delivers long-term operational savings and supports green certifications.

Comprehensive Tenant Improvement Phase Checklist

To guarantee a seamless tenant build-out, the project coordination team must execute specific tasks at critical milestones throughout the project lifecycle. The following structured checklist outlines the essential action items, deliverables, and responsible parties for each development phase:

Project Phase	Milestone / Objective	Strategic Coordination Action Items	Core Technical Deliverables	Responsible Parties
Design Phase	Define System Parameters & Establish Coordinated Base.	• Conduct exhaustive field surveys or 3D laser scans of the existing structure. • Execute precise heating and cooling load calculations using HAP or Trace 700. • Establish regional code compliance pathways (NEC, ASHRAE, NFPA, IPC).	• Coordinated HVAC Load Reports. • Electrical Single Line Diagrams (SLD). • Initial 3D MEP Layout Models.	Lead MEP Engineers, BIM Managers.
Pre-Construction Phase	Complete Clash Resolution & Finalize Fabrication Plans.	• Aggregate individual models into a federated project model. • Enforce the Routing Priority Matrix in Navisworks Manage. • Resolve all hard and soft clearances with access planning. • Coordinate structural slab penetrations and wet column tie-ins.	• Federated Clash Detection Reports. • Coordinated MEP Layout Drawings (PDF/DWG). • Off-site Fabrication Spool Drawings.	BIM Managers, Subcontractors, General Contractor.
Construction Phase	Execute Layouts, Manage Sequencing, & Build.	• Conduct on-site inspections to verify physical installation matches the 3D model. • Execute the pre-planned installation sequence strictly. • Manage RFI processes for unforeseen field-condition discrepancies. • Perform dynamic pressure balancing on HVAC duct branches.	• Field Inspection Reports. • Air & Water Balancing Verification. • Updated Redline Construction Mockups.	General Contractor, MEP Subcontractors.
Commissioning Phase	Handover, System Verification, & Compliance.	• Execute functional testing of mechanical, electrical, and life safety systems. • Ensure exit sign lighting and emergency power transfer operates correctly. • Submit complete mechanical, electrical, and plumbing plans for final inspection.	• As-Built MEP Drawings and Models. • System Commissioning Certificates. • Equipment Operation & Maintenance Manuals.	Commissioning Agent, Lead Engineers, Inspectors.

Concluding Framework for MEP Coordination for Office Tenant Improvements

Navigating the complexities of MEP coordination for office tenant improvements requires transforming a highly constrained interior space into a fully functional, energy-efficient, and code-compliant workplace. Because modern offices feature dense occupant loads, smart electrical infrastructure, and high indoor environmental expectations, designers cannot rely on traditional, siloed construction practices.

Attempting to resolve spatial conflicts during construction results in high field modification costs, critical schedule delays, and compromised system performance. To avoid these issues, developers and general contractors must implement a proactive engineering strategy from day one.

First, projects must establish a Building Information Modeling (BIM) workflow during the early design phase. Bringing MEP coordination experts into the loop early allows for comprehensive spatial modeling, automated clash detection, and accurate prefabrication planning. This approach saves considerable capital and dramatically shortens overall construction timelines.

Second, mechanical, electrical, and plumbing systems must be re-engineered—rather than simply patched in. New wall configurations shift thermal loads, modify wet column requirements, and impact fire protection coverage. Recalculating cooling requirements via HAP, balancing single-line electrical schedules, and mapping out gravity drainage slopes ensures the final build-out operates at peak performance.

Finally, compliance with energy standards like ASHRAE 90.1 must be handled as a core design parameter rather than a secondary checklist item. Implementing advanced HVAC setbacks, demand-controlled ventilation, daylight harvesting systems, and thermal bridge mitigation measures results in highly competitive properties with lower operating costs, high tenant retention, and maximum asset value. Working with experienced partners like EngrTeam allows building owners and operators to execute office tenant improvements that are constructible, energy-efficient, and fully optimized for long-term operations.
